제품

product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 14443 A/B, 15693, Tag-it Protocols
Modulation Type
ASK 5~35% & ASK 100%
Operating Range
Up to 10cm
Supply Voltage
2.9V ~ 3.6V
Package
32pin LQFP (7.0mm x 7.0mm)

FEATURE

›  Performs analog and Digital mixed operations as standards indicated
›  Power consumption minimization
   - Hardware/Software power down function
   - Minimized leakage and Stand-by current
›  Functions for microprocessor interface
   - 128bytes FIFO buffer for immediate data storage
   - 4Type of parallel interface and SPI serial interface
›  Two transmit driver can be configured
›  Auto calibration function for the analog receiver
›  Transmit power and modulation index configuration
›  Adjustable receiver sensitivity depends on noise condition
›  Data rate and Pulse width configuration according to protocol standards
　　　　　
product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 14443 A/B, 15693, Tag-it Protocols
Modulation Type
ASK 5~35% & ASK 100%
Operating Range
Up to 10cm
Supply Voltage
2.9V ~ 3.6V
Package
32pin LQFP (7.0mm x 7.0mm)

FEATURE

›  Performs analog and digital mixed operations as standards indicated
›  Power consumption minimization
   - Hardware/Software power down function
   - Minimized leakage and stand-by current
›  Functions for microprocessor interface
    - 128bytes FIFO buffer for immediate data storage
    - 4Type of parallel interface and SPI serial interface
›  Two transmit driver can be configured
›  Auto calibration function for the analog receiver
›  Transmit power and modulation index configuration
›  Adjustable receiver sensitivity depends on noise condition
›  Data rate and Pulse width configuration according to protocol standards
　　　　　
product_img

SPECIFICATION

Frequency
13.56MHz
Operating Temp
-40 ~ 125°C
Protocol
ISO/IEC 14443 A/B, 15693 Standards I-CODE, Tag-It, Felica, Jewel Protocols, ISO/IEC 18092
Modulation Type
ASK 5~35% & ASK 100%
Operating Range
Up to 10cm Depending on Tag Type
Supply Voltage
3.0V ~ 5.0V TX Power
3.0V Analog and Logic power
ESD(HBM)
8kV
Host Interface
SPI/I2C
Internal LDO
Yes
Certification
AEC-Q100 (Grade1), Certification Release 13(CCC Digital Key Reader Device, NFC Reader Device)
Package
24pin QFN (4.0mm x 4.0mm)

FEATURE

›  Basic information
   - 13.56MHz Multi-Protocol NFC Reader IC
   - Internal card detector (Include internal OSC: 50kHz)
›  Performs analog and Digital mixed operation as standards indicated
   - Modulation/Demodulation, Encoding/Decoding
   - Framing and Collision detection for Anti-collision
›  Functions for microprocessor interface
   - 256bytes FIFO buffer for immediate data storage
   - Configurable interrupt can inform event to microprocessor
   - Configurable and Adjustable timer function can cooperated with transceiver state and interrupt
›  Power consumption minimization
   - Hardware/Software power down function
   - Minimized leakage and Stand-by current
　　　　　
product_img

SPECIFICATION

Frequency
27.12MHz
Operating Temp
-40 ~ 125°C
Protocol
ISO/IEC 14443 A/B, 15693 Standards I-CODE, Tag-It, Felica, Jewel Protocols, ISO/IEC 18092
Modulation Type
ASK 5 ~ 35% & ASK 100%
Operating Range
Up to 10cm Depending on Tag Type
Supply Voltage
1.62 ~ 5.5V (VBAT)
Package
32pin QFN (4.0mm X 4.0mm)

FEATURE

›  Operating mode : Reader/Writer and Card emulation, Active and passive peer to peer
›  Active and Passive peer to peer initiator and target modes, Up to 424Kbit/s
›  Low power card detection
›  Low power NFC active and passive target modes
›  Transmitter
   - Improvement of RF-Power
   - RF Shape control and Dynamic power control
   - Active modulation for P2P
›  Receiver
   - Improvement of sensitivity
   - I/Q Receiver architecture
   - AGC(RSSI) Function
›  Calibration of antenn tuning
›  512byte FIFO
　　　　　
product_img

SPECIFICATION

Frequency
13.56MHz
Operating Temp
-40 ~ 85°C
Protocol
NFC Forum Type3 Tag
JIS 6319-4
Data Rate
214 / 424Kbps
Supply Voltage
2.0V ~3.6 (VCC)
Host Interface
I2C
Memory
1Kbyte EEPROM, 64byte SRAM
Package
8pin XQFN (1.6mm x 1.6mm)

FEATURE

›  Functions for microprocessor interface
   - I2C Slave (Up to 400kHz)
   - IRQ Output to Advise Tag status monitoring
›  Energy harvesting
   - Rectifier power out (VREC) Up to 20mW, Not regulated
   - Depending on external RF and Antenna condition
›  Power consumption minimization
   - Optimized logic and Internal gated low frequency clock
   - Minimized leakage and Stand by current
　　　　　
product_img

SPECIFICATION

Frequency
13.56MHz
Operating Temp
-40 ~ 85°C
Protocol
NFC Forum Type3 Tag
JIS 6319-4
Data Rate
212Kbps
Supply Voltage
1.62V ~ 3.6V
Em-MCU
Flip8051-Cyclone
Host Interface
UART/I2C
Memory
6Kbyte EEPROM, 2Kbyte RAM
ETC Information
Em-12bit ADC, Sensor
Interface, Internal LDO
Package
16pin QFN (4mm x 4mm)

FEATURE

›  4Stage pipeline architecture, 12Times faster than the legacy 80C51/52
›  Analog RF field detection and Wakeup
›  Integrated RF tuning capacitor
›  4Channel 12bit-ADC with sensor trigger interface
›  Internal 1.8V LDO
›  Integrated PWM and Current drive sensor interface controller
›  Energy harvesting
   - Up to 5.0mA @ 3.0 V (Harvesting VREC)
   - Depend on external antenna and RF condition
　　　　　
product_img

SPECIFICATION

Frequency
13.56MHz
Operating Temp
-40~ 85°C
Support protocol
NFC Forum Type 3 Tag
JIS 6319-4
Data Rate
212kbps
Supply Voltage
1.62V ~ 3.6V
Em-MCU
Flip8051-Cyclone
Host Interface
UART/I2C/SPI
Memory
32Kbyte Flash, 2Kbyte RAM
Package
QFN28(4x4mm)
ETC Information
Em-12bit ADC, Sensor Interface, Internal LDO
product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 14443 A/B, ISO/IEC 15693, Felica
PCB Size
39mm x 20mm x 6.5mm
DC Power
5V
TX driver Power
Max 80mA
Antenna
HF Loop antenna, 42mm x 27mm x 6.5mm
Antenna cable 200 mm
Interface
UART
Operating Range
Up to 70mm
Operating Temper
-20 ~ 65°C

FEATURE

›  Supports protocol
    - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica
›  13.56MHz RFID Reader module
›  Based on the TRH033M-S
›  Microcontroller – 8Kbyte Flash, 1Kbyte SRAM, 512byte EEPROM
›  Separated antenna with board
›  RS-232 Serial interface
　　　　　
product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 14443 A / B, ISO/IEC 15693 Felica
PCB Size
30mm x 50mm x 11mm
DC Power
5V
TX driver Power
Max 80mA
Antenna
HF Loop antenna, 28mm x 48mm
Interface
UART
Operating Range
Up to 50mm
Operating Temp
-20 ~ 65°C

FEATURE

›  Supports protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica
›  13.56MHz RFID Reader module
›  Based on the TRH033M-S
›  8Kbyte Flash, 1Kbyte SRAM, 512byte EEPROM
›  On board HF Loop antenna
›  RS-232 Serial interface
　　　　　
product_img

SPECIFICATION

Frequency
13.56MHz
PCB Size
52mm x 67mm x 4.5mm
DC Power
5V Max
TX Driver Power
80mA
Antenna
HF Loop antenna, 50mm x 37mm x 4.5mm
Antenna cable 200mm
Interface
USB
Operating Range
Up to 70mm
Operating Temperature
-20 ~ 65°C

FEATURE

›  Based on the TRH033M-S
›  Separated antenna with board
›  Supports protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica,Topaz, ISO/IEC 18092 (Active P2P)
›  Support ISO/IEC 18092 (NFCIP-1) / ECMA 340
   - RFID Reader and Writer mode
   - Peer to Peer mode
›  Support all NFC Forum Tags (Type1 , 2, 3, 4)
›  Active initiator and Active/Passive target mode according to ISO/IEC 18092
›  8Kbyte Flash, 1Kbyte SRAM, 512byte EEPROM
　　　　　
product_img

SPECIFICATION

Frequency
13.56MHz
PCB Size
64mm x 84mm x 4.5mm
DC Power
5V Max
TX Driver Power
100mA
Antenna
HF Loop antenna
56mm x 62mm
Interface
USB
Operating Range
Up to 50mm
Operating Temperature
-20 ~ 65°C

FEATURE

›  Based on the TRH033M-S
›  On board HF Loop antenna
›  Supports protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica, Topaz, ISO/IEC 18092 (Active P2P)
›  Support ISO/IEC 18092 (NFCIP-1) / ECMA 340
   - RFID Reader and Writer mode
   - Peer to Peer mode
›  Support all NFC Forum Tags (Type1 , 2, 3, 4)
›  Active initiator and Active/Passive target mode according to ISO/IEC 18092
›  Microcontroller– 8Kbyte Flash, 1Kbyte SRAM, 512byte EEPROM
　　　　　

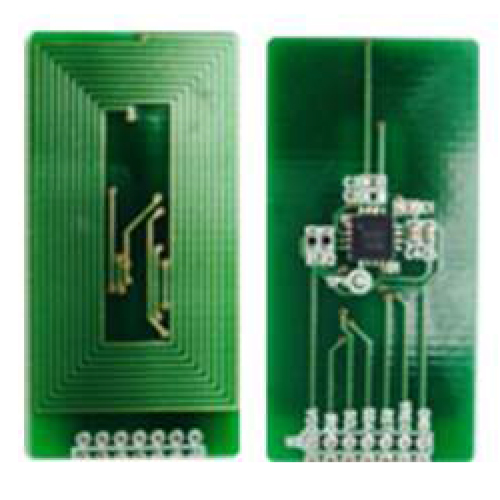

product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 18092 (JIS 6319-4)
Operating Temperature
-40 ~ 85°C
Power
1.6 ~ 3.6V I2C (up to 400kHz)
Host interface
I2C (up to 400kHz)
Board
15mm x 30mm x 1.75mm
Antenna Size
10 turn, 14mm x 26mm L = 2.25μH
NFC mode
Type 3 tag emulation *NFCIP-1 passive target
Modulation
Load modulation
Memory
SRAM 256bytes
Data rate
212 / 424kbps

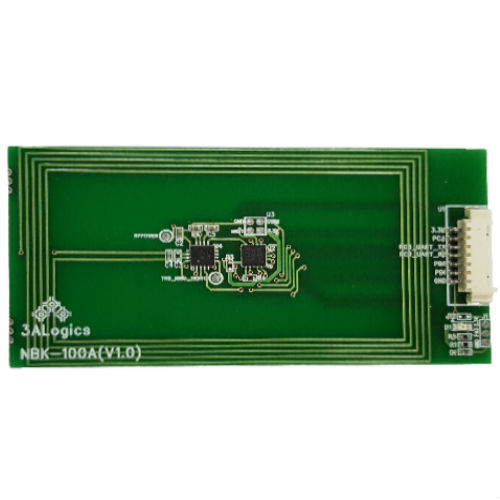

product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 18092 (JIS 6319-4)
Operating Temperature
-40 ~ 85°C
Power
1.6 ~ 3.6V
Host interface
UART or GPIO 3port (9600~115200 bps)
Board
32mm x 61mm x 1.75mm
Antenna Size
5 turn, 31mm x 52mm L = 2.47μH
NFC mode
Type 3 tag emulation *NFCIP-1 passive target
Modulation
Load modulation
MCU
8bit Ultralow power MCU
Memory
Flash 8Kbyte, SRAM 1.5Kbytes, EEPROM 2Kbytes
product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 18092 (JIS 6319-4)
Operating Temperature
-40 ~ 85°C
Power
1.6 ~ 3.6V
Host interface
USB 2.0 Full Speed (Virtual Serial port)
Board
32mm x 65mm x 3.7mm
Antenna Size
5 turn, 31mm x 52mm L = 2.47μH
NFC mode
Type 3 tag emulation *NFCIP-1 passive target
Modulation
Load modulation
MCU
ARM-based 32bit MCU
Memory
Flash 64Kbyte, SRAM 20Kbytes
product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 15693, NXP SL2 ICS20 (I-CODE)
Size
220mm x 125mm x 80mm - Housed
Baud Rate
1.6 / 26.5Kbps
Anti-collision
Available
DC Power
24V DC
TX Power
Max 3W
Antenna
TRA-400L, 50ohm External antenna
RF Coaxial Cable Type
350mm x 420mm x 45mm
Interface
RS232/485
Operating Range
Up to 50
Operating temperature
-20°C ~ 65°C

MCU FEATURE

›  Only ISO/IEC 15693
›  13.56MHz Long range Reader module
›  Based on the TRH033M-S
›  External power boost up circuit
   - Based on the BLF245 (Power TR)
›  Microcontroller with 1Kbyte SRAM, 512byte EEPROM
›  Separated antenna with board (50ohm)
›  RS-232/485 Serial interface
›  6 LED indicators
　　　　　
product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 14443 A/B, 15693 Standards I-CODE, Tag-It, Felica, Jewel, HCE protocols
Size
112 x 62 x 15mm (L x W x H)
DC Power
5V (USB)
Interface
USB
Operating Range
Up to 10cm depending on tag type
product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 18092 (JIS 6319-4)
Operating Temp
0 ~ 85°C
DC Power
No Battery (2.0 ~ 3.0V harvesting )
Or 3.0V Battery
Operating current
Typ. 2mA (@3.0V)
Operating range
Up to 2.0cm
Size
PCB - FR4, 1.6T
52mm x 120mm x 22.1mm
Application
Energy Harvesting
product_img

SPECIFICATION

Frequency
13.56MHz
Protocol
ISO/IEC 18092 (JIS 6319-4)
Operating Temp
-40 ~ 85°C
Power
1.65 ~ 3.6V
Host interface
USB 2.0 full speed interface
*Virtual COM (Serial communication)
Host interface Protocol
N-Bridge Command / Protocol (proprietary)
Board
PCB - FR4, 1.0T
32mm x 65mm x 4mm
Antenna Size
5 turn, 30mm x 52.5mm L = 2.9μH
NFC mode
Type 3 tag emulation
*NFCIP-1 passive target
Modulation
Load modulation
Data rate
212 / 424kbps (Selective data rate)

FEATURE

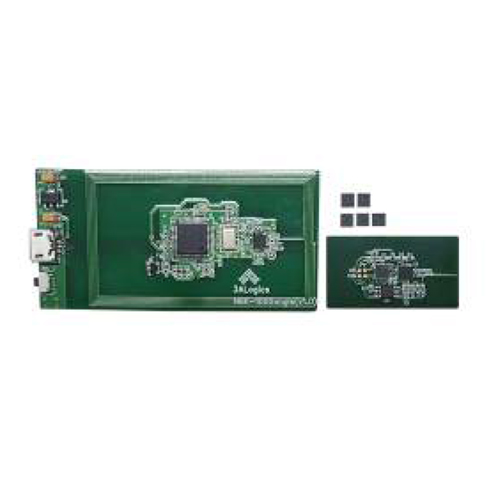

[ NBK-100 Dongle KIT Component ]

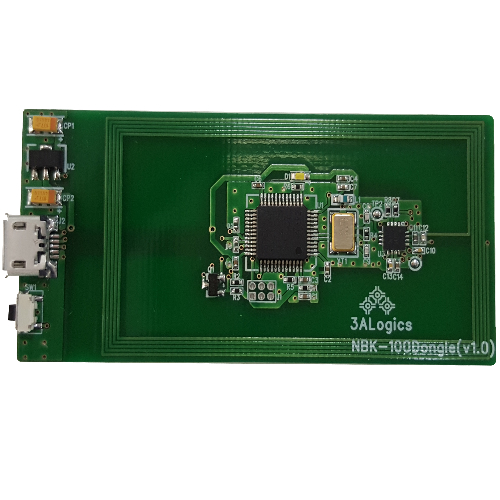

• NBM-100 Dongle Board 1 EA
   : Main Board – SDK
• TNB131M IC 5 EA

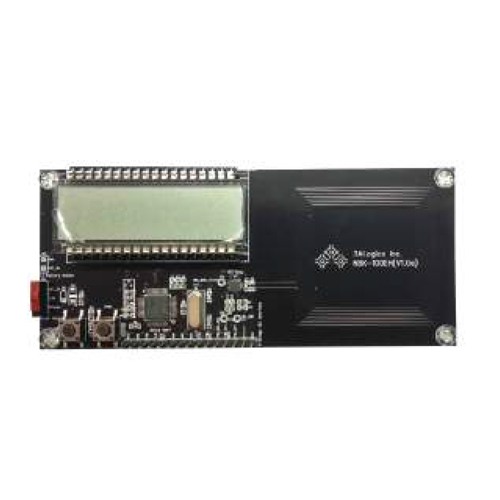

• NBK-100EH Board 1 EA
   : Energy Harvesting Application Board
• NBM-100DL Board 1 EA
   : Data logger Application Board
    (with Temperature sensor)　　　　　
product_img

SPECIFICATION

NFC Frequency
13.56MHz
NFC Protocol
ISO/IEC 15693 Standard, (NXP SL2 ICS20, I-CODE)
Operating Range
Up to 50cm
Display
7” TFT LCD, 3Color LED
OS
MS Windows XP, 7

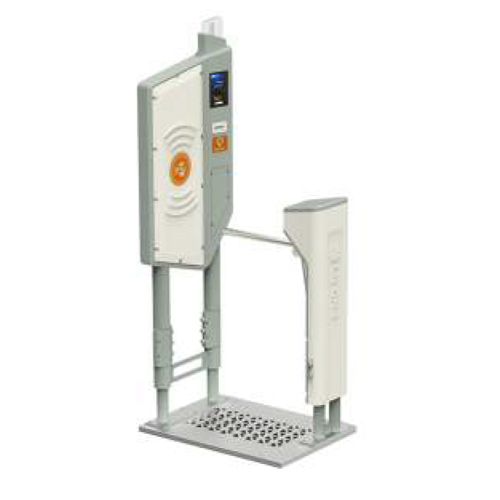

Entrance Control
Bipod Turnstile bar
Electro-mechanical motor Rotation
Positive locking operation for one person at a time
Power
24V DC SMPS 250W x 2
product_img

SPECIFICATION

Frequency
13.56MHz
NFC Protocol
ISO/IEC 14443 A type (Type2)
ISO/IEC 15693
Power
5.0V USB Power
TEST Antenna
0.5μH ~ 5μH
NFC IC
Based on TRH033M-S
Dimension
NFC Reader Board
65mm x 100mm x 12mm
Matching Board
65mm x 50mm x 10mm
Antenna interface Board
15mm x 15mm x 5mm
NTJ-100
95mm x 305mm x 40mm
Special Feature
• 4 LED indicator
• 1 Buzzer
• Antenna impedance matching adjustment : 2 trimmer - Shunt/Series
• Receiver signal dynamic range adjustment : variable resistor

FEATURE

[ NTJ-100 Component ]


›  NFC/RFID Reader Board 1EA
›  Acrylic Mount Board 1 EA
›  Antenna Matching Board 5 EA
    -  0.5μH ≤ Lant ≤ 0.7μH Board 1EA
    -  0.7μH ≤ Lant ≤ 1.0μH Board 1EA
    -  1.0μH ≤ Lant ≤ 1.5μH Board 1EA
    -  1.5μH ≤ Lant ≤ 2.5μH Board 1EA
    -  2.5μH ≤ Lant ≤ 5.0μH Board 1EA
›  Antenna Connector Board 10EA
›  Reference Antenna 2EA (2Type)
›  Reference ISO/IEC 14443 A TAG 1EA
    -  ISO/IEC15693 TAG 1EA
› Adjustment tool 1EA

　　　　　

3ALogics
PRODUCT

TECHNICAL
DATA
