NFC Study Kit

Specification

product_img
Frequency
13.56MHz
Protocol
ISO/IEC 15693, NXP SL2 ICS20 (I-CODE)
Size
220mm x 125mm x 80mm - Housed
Baud Rate
1.6 / 26.5Kbps
Anti-collision
Available
DC Power
24V DC
TX Power
Max 3W
Antenna
TRA-400L, 50ohm External antenna
RF Coaxial Cable Type
350mm x 420mm x 45mm
Interface
RS232/485
Operating Range
Up to 50
Operating temperature
-20°C ~ 65°C

MCU Feature

›  Only ISO/IEC 15693
›  13.56MHz Long range Reader module
›  Based on the TRH033M-S
›  External power boost up circuit
   - Based on the BLF245 (Power TR)
›  Microcontroller with 1Kbyte SRAM, 512byte EEPROM
›  Separated antenna with board (50ohm)
›  RS-232/485 Serial interface
›  6 LED indicators
　　　　　

Specification

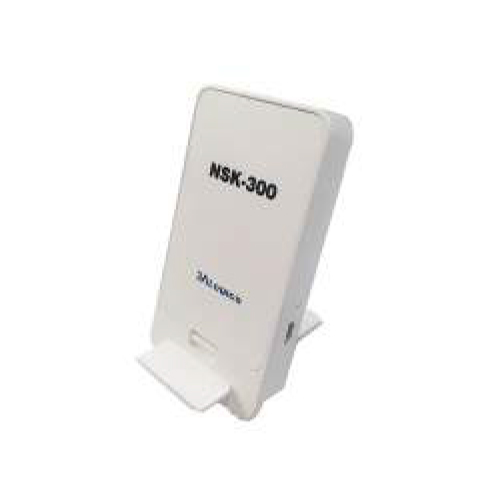

product_img
Frequency
13.56MHz
Protocol
ISO/IEC 14443 A/B, 15693 Standards I-CODE, Tag-It, Felica, Jewel, HCE protocols
Size
112 x 62 x 15mm (L x W x H)
DC Power
5V (USB)
Interface
USB
Operating Range
Up to 10cm depending on tag type

Specification

product_img
Frequency
13.56MHz
NFC Protocol
ISO/IEC 14443 A type (Type2)
ISO/IEC 15693
Power
5.0V USB Power
TEST Antenna
0.5μH ~ 5μH
NFC IC
Based on TRH033M-S
Dimension
NFC Reader Board
65mm x 100mm x 12mm
Matching Board
65mm x 50mm x 10mm
Antenna interface Board
15mm x 15mm x 5mm

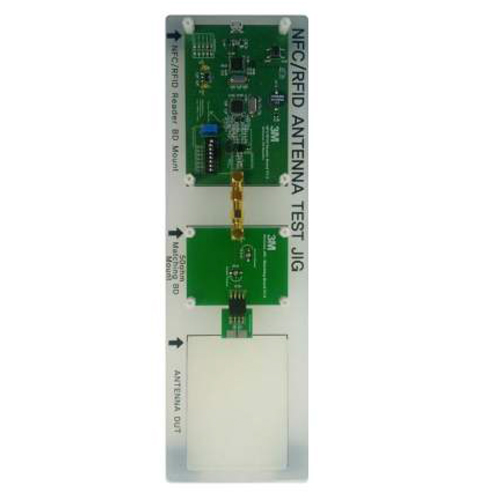

NTJ-100
95mm x 305mm x 40mm
Special Feature
• 4 LED indicator
• 1 Buzzer
• Antenna impedance matching adjustment : 2 trimmer - Shunt/Series
• Receiver signal dynamic range adjustment : variable resistor

Feature

[ NTJ-100 Component ]


›  NFC/RFID Reader Board 1EA
›  Acrylic Mount Board 1 EA
›  Antenna Matching Board 5 EA
    -  0.5μH ≤ Lant ≤ 0.7μH Board 1EA
    -  0.7μH ≤ Lant ≤ 1.0μH Board 1EA
    -  1.0μH ≤ Lant ≤ 1.5μH Board 1EA
    -  1.5μH ≤ Lant ≤ 2.5μH Board 1EA
    -  2.5μH ≤ Lant ≤ 5.0μH Board 1EA
›  Antenna Connector Board 10EA
›  Reference Antenna 2EA (2Type)
›  Reference ISO/IEC 14443 A TAG 1EA
    -  ISO/IEC15693 TAG 1EA
› Adjustment tool 1EA

　　　　　

Specification

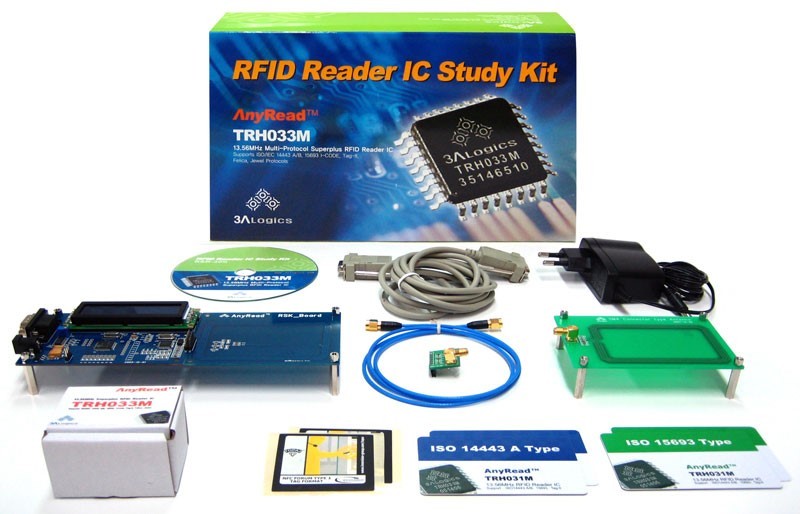

product_img
Frequency
13.56MHz
Protocol
ISO/IEC 14443 A/B, 15693
Standards I-CODE, Tag-it
Felica, Jewel Protocols
Reader Size
110mm x 74mm (L x W)
Antenna Size
80mm x 53mm (L x W)
Balun Module Size
20mm x 20mm (L x W)
DC Power
5V (DC jack)
Interface
RS232
Operating Range
Up to 10cm Depending on Tag Type

MCU Feature

›  Microcontroller with 256Kbyte RAM, 64Kbyte ROM
›  On board HF Antenna coil
›  16 X 2 Character LCD module
　　　　　

Specification

product_img
Frequency
13.56MHz
Protocol
ISO/IEC 14443 A/B, 15693, Tag-it
Reader Size
Standards 110mm X 74mm (L X W)
Antenna Size
80mm x 53mm (L x W)
DC Power
5V (DC jack)
Interface
RS232
Operating Range
Up to 10cm Depending on Tag Type

MCU Feature

›  Microcontroller with 256byte RAM, 64Kbyte ROM
›  On board HF Antenna coil
›  16 x 2 Character LCD module
　　　　　

Specification

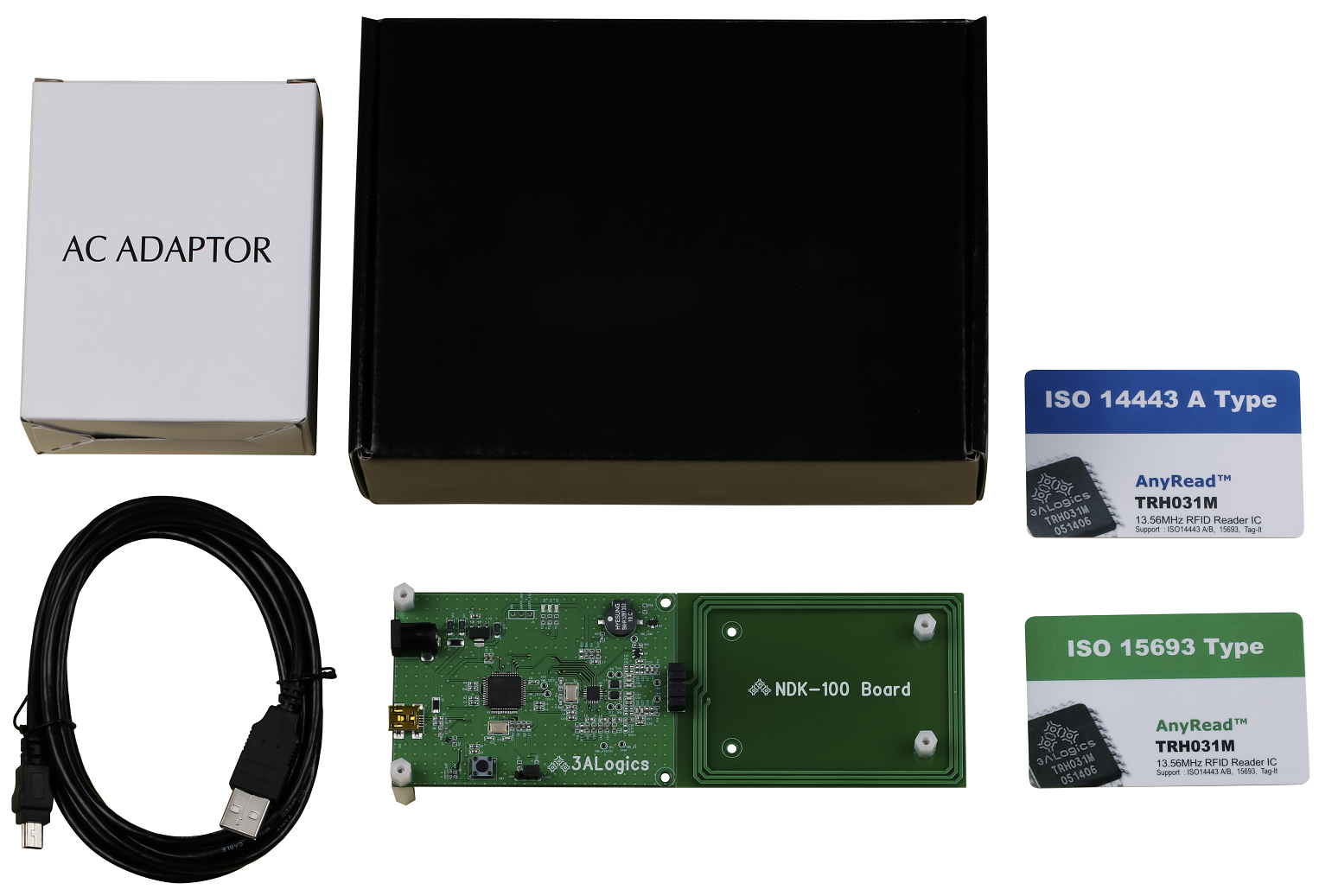

product_img
Frequency
13.56MHz
Protocol
ISO/IEC14443 A/B, ISO/
IEC15693, ISO/IEC 18092
Felica, Tag-lt, Jewel, HCE
PCB Size
172mm x 60mm (L x W)
DC Power
5V (USB)
Interface
USB
Operating Range
Up to 10cm Depending on Tag Type

MCU Feature

›  Microcontroller
   - ARM 32bit Cortex – M3
   - 120MHz Maximum frequency
   - Memories: 128Kbytes Flash, 64Kbytes SRAM
   - Communication interface: SPI, I2C, UART, USB
　　　　　
