멀리 떨어져 있는 사물들을 제어하거나 모니터링 하는 것 (주로 하나의 사물)
NFC | RFID | Bluetooth | Bluetooth LE | ANT | Proprietary (Sub-GHz & 2.4 GHz) | Wi-Fi | ZigBee | Z-wave | KNX | Wireless HART | 6LoWPAN | WiMAX | 2.5-3.5 G | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Network | PAN | PAN | PAN | PAN | PAN | LAN | LAN | LAN | LAN | LAN | LAN | LAN | MAN | MAN |
Topology | P2P | P2P | Star | Star | P2P, Star, Tree Mesh | Star, Mesh | Star | Mesh, Star, Tree | Mesh | Mesh, Star, Tree | Mesh, Star | Mesh, Star | Mesh | Mesh |
Power | Very Low | Very Low | Low | Very Low | Very Low | Very Low to low | Low-High | Very Low | Very Low | Very Low | Very Low | Very Low | High | High |
Speed | 400 Kbs | 400 Kbs | 700 Kbs | 1 Mbs | 1 Mbs | 250 kbs | 11-100 Mbs | 250 kbs | 40 Kbs | 1.2 Kbps | 250 kbs | 250 kbs | 11-100 Mbs | 1.8-7.2 Mbs |
Range | <10 cm | <3 m | <30 m | 5-10 m | 1-30 m | 10-70 m | 4-20 m | 10-300 m | 30 m | 800 m | 200 m | 800 m (Sub-GHz) | 50 km | Cellular network |
Application | Pay, get access, share, initiate service, easy setup | Item tracking | Network for data exchange, headset | Health and fitness | Sports and fitness | Point to point connectivity | Intemet, multimedia | Sensor networks, building and industrial automation | Residenti- allighting and automation | Building automation | Industrial sensing networks | Senor networks, buildingand industrial automation | Metro areabro- adband Intemet connectivity | Cellular- phones and telemetry |
Cost Adder | Low | Low | Low | Low | Low | Medium | Medium | Medium | Low | Medium | Medium | Medium | High | High |
NFC | RFID | Bluetooth | Bluetooth LE | ANT | Proprietary (Sub-GHz & 2.4 GHz) | Wi-Fi | |
---|---|---|---|---|---|---|---|
Network | PAN | PAN | PAN | PAN | PAN | LAN | LAN |
Topology | P2P | P2P | Star | Star | P2P, Star, Tree Mesh | Star, Mesh | Star |
Power | Very Low | Very Low | Low | Very Low | Very Low | Very Low to low | Low-High |
Speed | 400 Kbs | 400 Kbs | 700 Kbs | 1 Mbs | 1 Mbs | 250 kbs | 11-100 Mbs |
Range | <10 cm | <3 m | <30 m | 5-10 m | 1-30 m | 10-70 m | 4-20 m |
Application | Pay, get access, share, initiate service, easy setup | Item tracking | Network for data exchange, headset | Health and fitness | Sports and fitness | Point to point connectivity | Intemet, multimedia |
Cost Adder | Low | Low | Low | Low | Low | Medium | Medium |
ZigBee | Z-wave | KNX | Wireless HART | 6LoWPAN | WiMAX | 2.5-3.5 G | |
---|---|---|---|---|---|---|---|
Network | LAN | LAN | LAN | LAN | LAN | MAN | MAN |
Topology | Mesh, Star, Tree | Mesh | Mesh, Star, Tree | Mesh, Star | Mesh, Star | Mesh | Mesh |
Power | Very Low | Very Low | Very Low | Very Low | Very Low | High | High |
Speed | 250 kbs | 40 Kbs | 1.2 Kbps | 250 kbs | 250 kbs | 11-100 Mbs | 1.8-7.2 Mbs |
Range | 10-300 m | 30 m | 800 m | 200 m | 800 m (Sub-GHz) | 50 km | Cellular network |
Application | Sensor networks, building and industrial automation | Residenti- allighting and automation | Building automation | Industrial sensing networks | Senor networks, buildingand industrial automation | Metro areabro- adband Intemet connectivity | Cellular- phones and telemetry |
Cost Adder | Medium | Low | Medium | Medium | Medium | High | High |
NFC | RFID | Bluetooth | Bluetooth LE | |
---|---|---|---|---|
Network | PAN | PAN | PAN | PAN |
Topology | P2P | P2P | Star | Star |
Power | Very Low | Very Low | Low | Very Low |
Speed | 400 Kbs | 400 Kbs | 700 Kbs | 1 Mbs |
Range | <10 cm | <3 m | <30 m | 5-10 m |
Application | Pay, get access, share, initiate service, easy setup | Item tracking | Network for data exchange, headset | Health and fitness |
Cost Adder | Low | Low | Low | Low |
ANT | Proprietary (Sub-GHz & 2.4 GHz) | Wi-Fi | ZigBee | |
---|---|---|---|---|
Network | PAN | LAN | LAN | LAN |
Topology | P2P, Star, Tree Mesh | Star, Mesh | Star | Mesh, Star, Tree |
Power | Very Low | Very Low to low | Low-High | Very Low |
Speed | 1 Mbs | 250 kbs | 11-100 Mbs | 250 kbs |
Range | 1-30 m | 10-70 m | 4-20 m | 10-300 m |
Application | Sports and fitness | Point to point connectivity | Intemet, multimedia | Sensor networks, building and industrial automation |
Cost Adder | Low | Medium | Medium | Medium |
Z-wave | KNX | Wireless HART | 6LoWPAN | |
---|---|---|---|---|
Network | LAN | LAN | LAN | LAN |
Topology | Mesh | Mesh, Star, Tree | Mesh, Star | Mesh, Star |
Power | Very Low | Very Low | Very Low | Very Low |
Speed | 40 Kbs | 1.2 Kbps | 250 kbs | 250 kbs |
Range | 30 m | 800 m | 200 m | 800 m (Sub-GHz) |
Application | Residenti- allighting and automation | Building automation | Industrial sensing networks | Senor networks, buildingand industrial automation |
Cost Adder | Low | Medium | Medium | Medium |
WiMAX | 2.5-3.5 G | |
---|---|---|
Network | MAN | MAN |
Topology | Mesh | Mesh |
Power | High | High |
Speed | 11-100 Mbs | 1.8-7.2 Mbs |
Range | 50 km | Cellular network |
Application | Metro areabro- adband Intemet connectivity | Cellular- phones and telemetry |
Cost Adder | High | High |
구분 | Beacon | NFC |
---|---|---|
기반기술 | 블루투스 저전력 기술(BLE) | RFID |
적용범위 | 최대 50m(5cm~50m), 원거리 | 20cm 이하, 근거리 |
태깅(Tagging) | 필요 없음(비접촉결제 기능) | 필요 |
안전성 | 상대적으로 취약 | 상대적으로 안전 |
Active | Passive | |
특성 | Public 서비스에 강점 | Pricate 서비스에 강점 |
일대다, 다대다 서비스 중심 | 일대일 서비스 중심 | |
다양한 S/W응용기술 가능. 컨버전스에 용이 | 태깅(Tagging)과정 통한 맥락인식 응용 가능 | |
장점 | 위치기반서비스(LBS)로 확장 가능 | 태깅(Tagging)으로 사용자 니즈 파악 가능 |
능동형 서비스(마케팅 기술 적용에 용이) | ||
단점 | 블루투스 실행 및 관련 S/W(App)필요 | 수동적 서비스 |
공통점 | 기존 Wifi 기술과 시너지 효과. 모바일 결제시장으로 해당 분야 기술 적용 가능광의적 개념의 사물인터넷과 연계성 존재 |

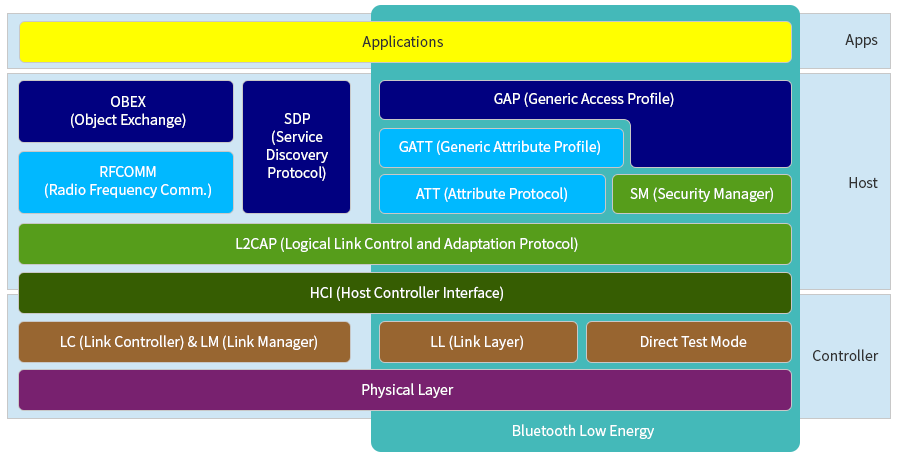

BLE의 프로토콜 스택은 크게 컨트롤러, 호스트 그리고 어플리케이션 영역으로 구분 할 수 있고, 컨트롤러와 호스트 영역간의 통신을 위해 HCI 가 사용됩니다.
Touch & Wireless pairing, Setup / Device to Device, Machine to Machine connections
Touch & Wireless pairing, Setup / Device to Device, Machine to Machine connections
Measurement | Touch & Go | Data Transfer | Service |
---|---|---|---|
![]() |
![]() |
![]() |
![]() |
NFC-Bridge IC가 내장된 만보계에서 일일 Walking count |
핸드폰을 만보계에 Touch 일일 Walking count 정보가 핸드폰으로 전송됨. |
수집된 data는 핸드폰의 Network를 통하여
Server에 보관됨. 수집된 data는 핸드폰의 App을 통해 내장 메모리에 보관됨. |
Server에 보관된 data Online service를
통하여 확인 및 관리. App을 통한 graph화 Data 통계화 |
Touch & Wireless pairing, Setup / Device to Device, Machine to Machine connections
