Smart Tag

Specification

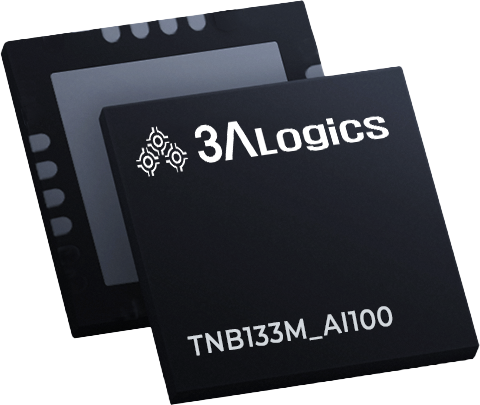

product_img
Frequency
13.56MHz
Operating Temp
-40 ~ 85°C
Protocol
NFC Forum Type3 Tag
JIS 6319-4
Data Rate
212Kbps
Supply Voltage
1.62V ~ 3.6V
Em-MCU
Flip8051-Cyclone
Host Interface
UART/I2C
Memory
6Kbyte EEPROM, 2Kbyte RAM
ETC Information
Em-12bit ADC, Sensor
Interface, Internal LDO
Package
16pin QFN (4mm x 4mm)

Feature

• 4Stage pipeline architecture, 12Times faster than the legacy 80C51/52
• Analog RF field detection and Wakeup
• Integrated RF tuning capacitor
• 4Channel 12bit-ADC with sensor trigger interface
• Internal 1.8V LDO
• Integrated PWM and Current drive sensor interface controller
• Energy harvesting

- Up to 5.0mA @ 3.0 V (Harvesting VREC)
- Depend on external antenna and RF condition

　　　　　

Specification

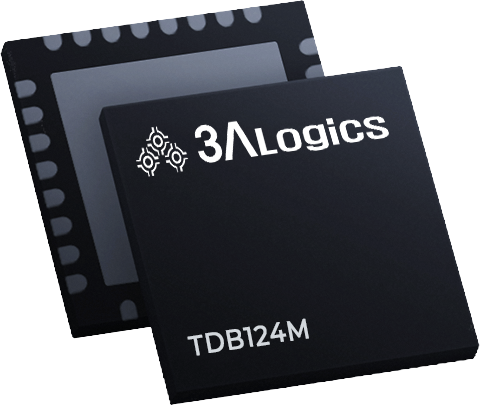

product_img
Frequency
13.56MHz / 860 ~ 960MHz
Operating Temp
-40 ~ 85°C
Protocol
NFC Forum Type2 Tag
ISO/IEC 14443 A
EPC Class1 Generation2
ISO/IEC 18000-6 mode3
Data Rate
106Kbps(NFC), 640K/UL
160K/DL (EPC)
Supply Voltage
2.0V ~ 3.6V
Em-MCU
RISC-V E20 Core
Host Interface
UART, I2C
Memory
32KB Program, 4KB Data
8KB SRAM / 3.6Kbits Tag Memory
ETC Infornation
12bit ADC, Sensor IO (ROIC)
Temperature Sensor
Package
32pin QFN (4mm X 4mm)

Feature

• Dual-Band RF Interface
• Embedded NVM memory

- Shared memory (3.6Kbits)
- EEPROM 326bytes (Code & Data configurable memory: Default 32KB/4KB)

• Internal temperature senser / RTC

- Tamperature range: -40~85°C / Accuracy : ±0.5°C
- RTC Clock accuracy: ±2%
- Configurable temperature interval

• Embedded 12bit SAR ADC
• Embedded ROIC

- Resistance / Capacitance / Inductance

• Embedded LDO
　　　　　
