- NFC/RFID Module -

  • TRM-500

FEATURE

• Supports Protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica
• 13.56MHz RFID Reader module
• Based on the TRH033M-S
• Microcontroller – 8k byte Flash, 1K byte SRAM, 512byte EEPROM
• Separated antenna with board
• RS-232 Serial interface

SPECIFICATION

Frequency 13.56MHz
Protocol ISO/IEC 14443 A & B, ISO/IEC 15693, Felica 39 x 20 (mm)
Size 39 x 20 (mm)
DC Power 5V
TX driver Power Max. 80mA
Antenna HF Loop antenna, 42 x 27 (mm)
Antenna cable 200 mm
Interface RS232
Operating Range Up to 70mm
Operating Temperature -20 ~ 65°C

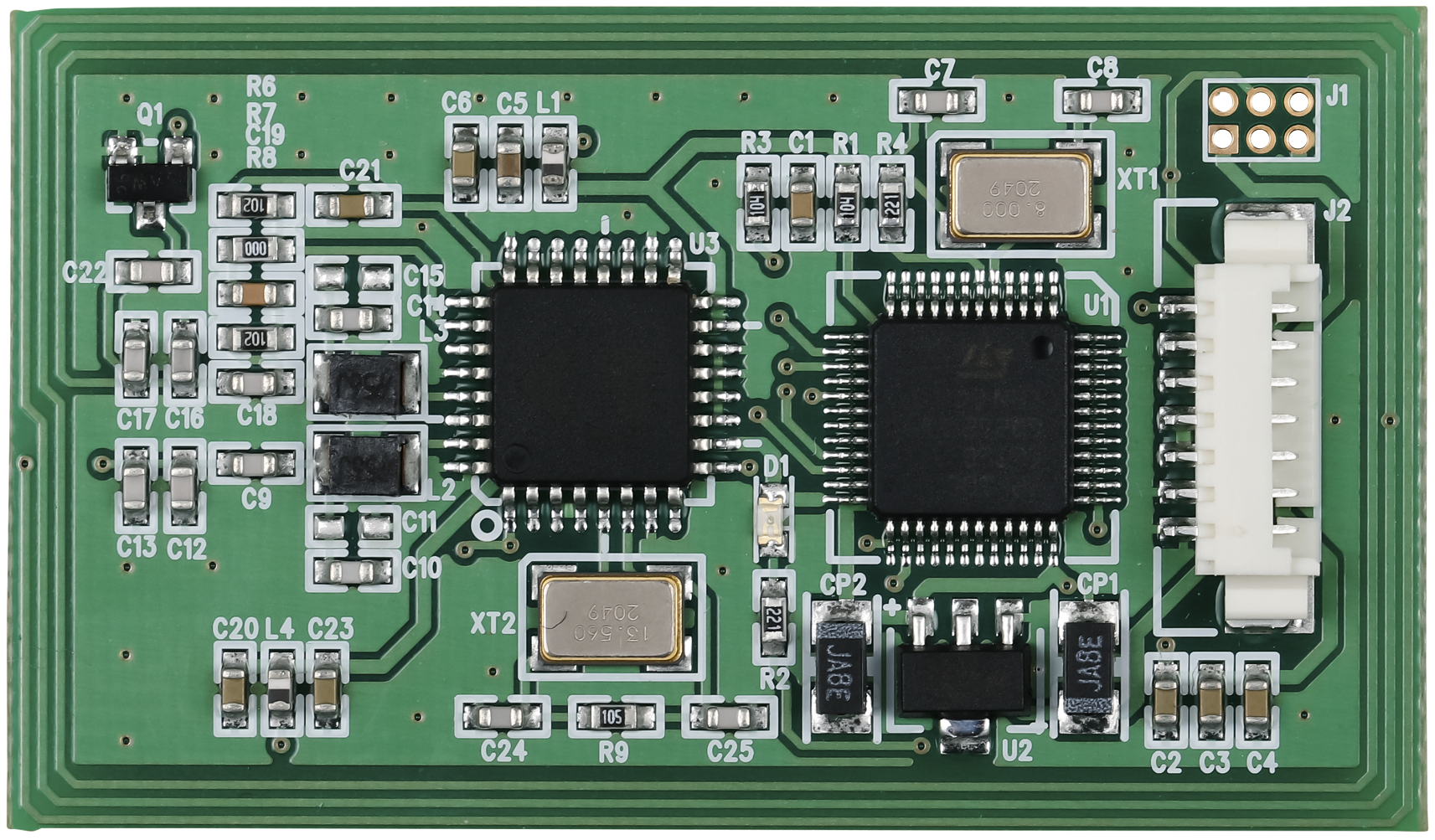

  • TRM-700

FEATURE

• Supports Protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica
• 13.56MHz RFID Reader module
• Based on the TRH033M-S
• Microcontroller – 8k byte Flash, 1K byte SRAM, 512byte EEPROM
• On board HF Loop antenna
• RS-232 Serial interface

SPECIFICATION

Frequency 13.56MHz
Protocol ISO/IEC 14443 A / B, ISO/IEC 15693
Size 30 X 50 X 11 (mm)
DC Power 5V
TX driver Power Max. 80mA
Antenna HF Loop antenna, 28 x 48 (mm)
Interface RS232
Operating Range Up to 50mm
Operating Temperature -20 ~ 65°C

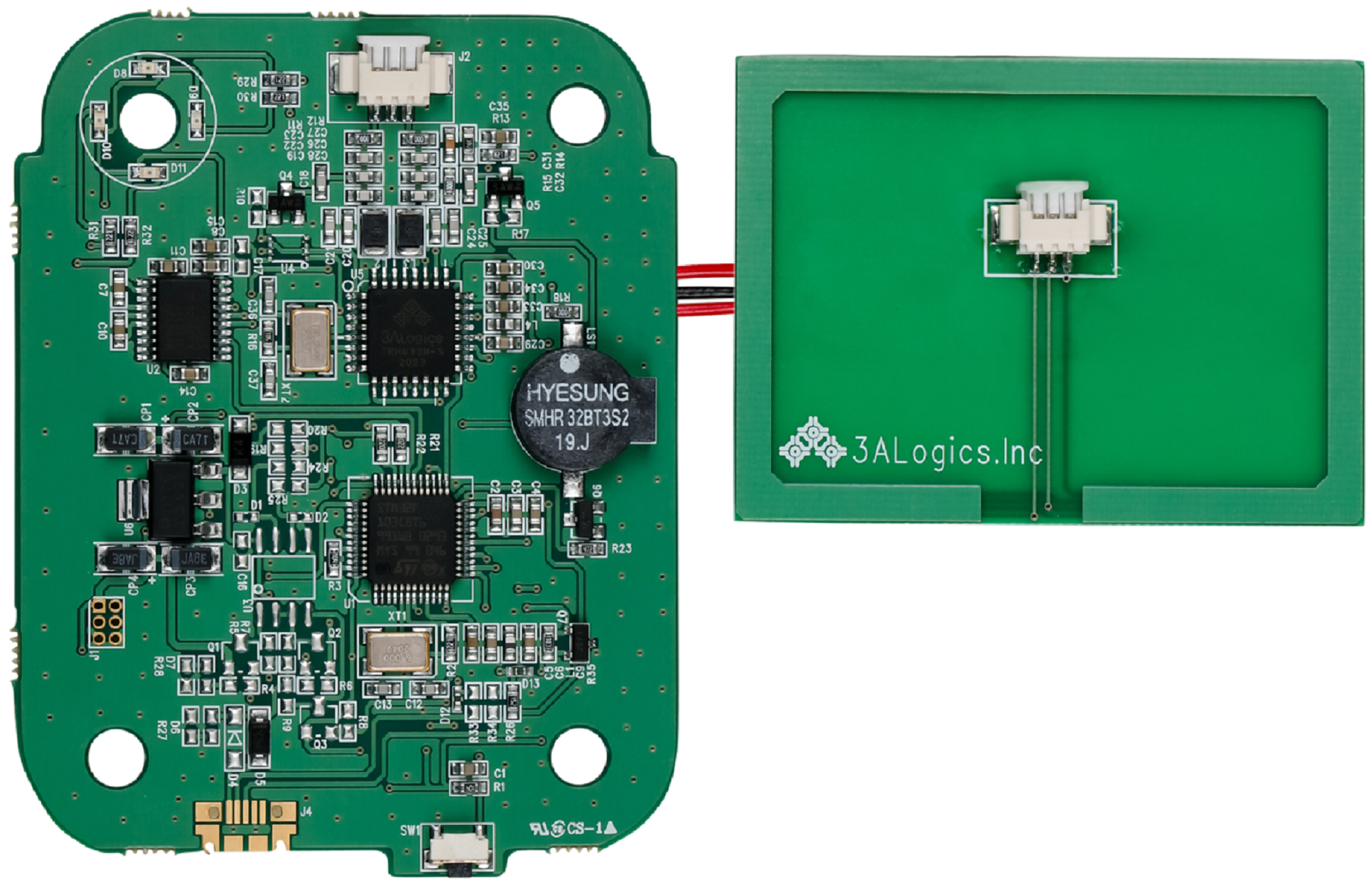

  • TRM-800N

FEATURE

• Based on the TRH033M-S
• Separated antenna with board
• Supports Protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica,
Topaz, ISO/IEC 18092 (Active P2P)
• Support ISO/IEC 18092 (NFCIP-1) / ECMA 340
   - RFID Reader and Writer mode
   - Peer to Peer mode
• Support all NFC Forum tags (Type1 , 2, 3, 4)
• Active initiator and Active/Passive target mode according to ISO/IEC 18092
• Microcontroller– 8k byte Flash, 1K byte SRAM, 512byte EEPROM

SPECIFICATION

Frequency 13.56MHz
Size 52 x 67 (mm)
DC Power 5V Max.
TX Driver Power 80mA
Antenna HF Loop antenna, 50 x 37 (mm)
Antenna cable 200 mm
Interface USB
Operating Range Up to 70mm
Operating Temperature -20 ~ 65°C

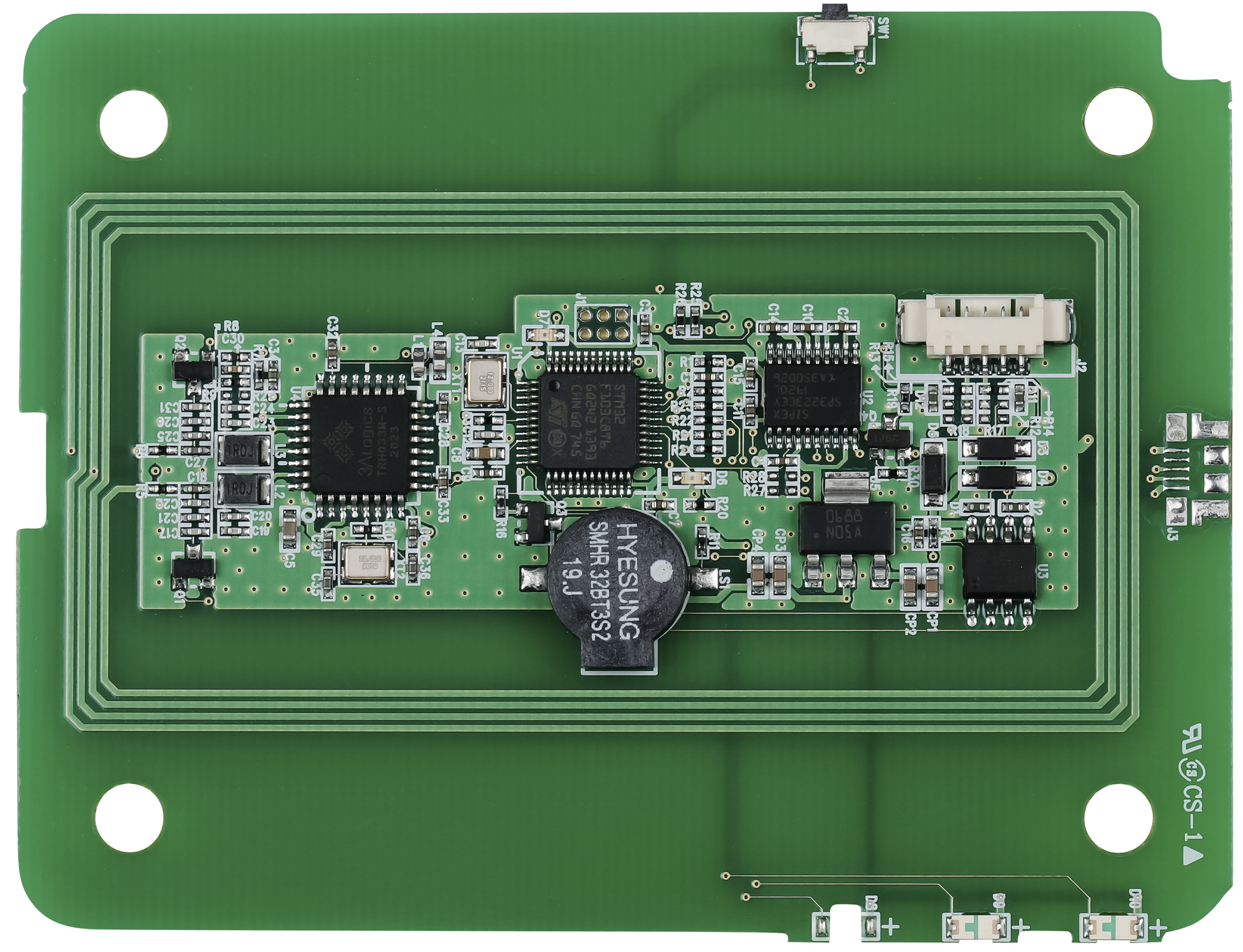

  • TRM-900N

FEATURE

• Based on the TRH033M-S
• On board HF Loop antenna
• Supports Protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica,
Topaz, ISO/IEC 18092 (Active P2P)
• Support ISO/IEC 18092 (NFCIP-1) / ECMA 340
   - RFID Reader and Writer mode
   - Peer to Peer mode
• Support all NFC Forum tags (Type1 , 2, 3, 4)
• Active initiator and Active/Passive target mode according to ISO/IEC 18092
• Microcontroller– 8k byte Flash, 1K byte SRAM, 512byte EEPROM

SPECIFICATION

Frequency 13.56MHz
Size 64 x 84 (mm)
DC Power 5V Max.
TX Driver Power 100mA
Antenna HF Loop antenna
56 x 62 (mm)
Interface USB
Operating Range Up to 50mm
Operating Temperature -20 ~ 65°C
  • NBM-100N

SPECIFICATION

Frequency 13.56MHz
Protocol ISO/IEC 18092 (JIS 6319-4)
Operating Temperature -40 ~ 85°C
Power 1.6 ~ 3.6V I2C (up to 400kHz)
Host interface I2C (up to 400kHz)
Board 15mm x 30mm x 1.75mm
Antenna Size 10 turn, 14mm x 26mm L = 2.25μH
NFC mode Type 3 tag emulation *NFCIP-1 passive target
Modulation Load modulation
Memory SRAM 256bytes
Data rate 212 / 424kbps
  • NBM-100A

SPECIFICATION

Frequency 13.56MHz
Protocol ISO/IEC 18092 (JIS 6319-4)
Operating Temperature -40 ~ 85°C
Power 1.6 ~ 3.6V
Host interface UART or GPIO 3port (9600~115200 bps)
Board 32mm x 61mm x 1.75mm
Antenna Size 5 turn, 31mm x 52mm L = 2.47μH
NFC mode Type 3 tag emulation *NFCIP-1 passive target
Modulation Load modulation
MCU 8bit Ultralow power MCU
Memory Flash 8Kbyte, SRAM 1.5Kbytes, EEPROM 2Kbytes
  • NBM-100Dongle

SPECIFICATION

Frequency 13.56MHz
Protocol ISO/IEC 18092 (JIS 6319-4)
Operating Temperature -40 ~ 85°C
Power 1.6 ~ 3.6V
Host interface USB 2.0 Full Speed (Virtual Serial port)
Board 32mm x 65mm x 3.7mm
Antenna Size 5 turn, 31mm x 52mm L = 2.47μH
NFC mode Type 3 tag emulation *NFCIP-1 passive target
Modulation Load modulation
MCU ARM-based 32bit MCU
Memory Flash 64Kbyte, SRAM 20Kbytes
