NFC Wireless Charging

Specification

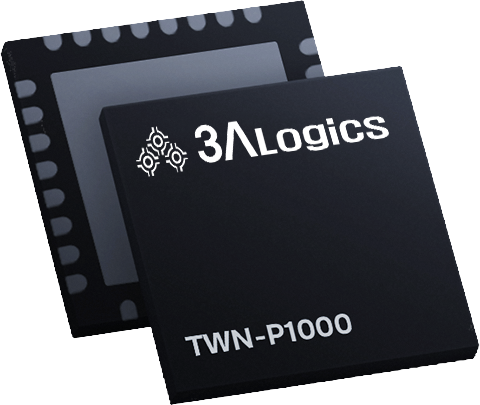

product_img

Feature

›  NFC Forum Class 0-250mW WLC Poller
›  One antenna for wireless power transfer and NFC communication
›  Automatic foreign object detector
›  Wireless Power Transfer(WPT) Automatic stop
›  ISO 14443 A/B, ISO 15693, NFC Type3 support
›  Automatic card detector function
›  Serial Interface
    - I2C Slave, SPI
›  256byte FIFO buffer for immediate storage
›  5.0V operation, 28pin package
　　　　　

Specification

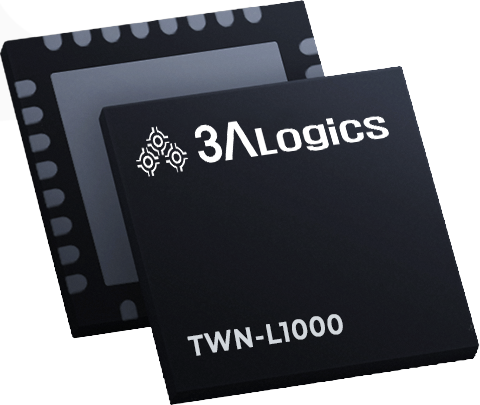

product_img

Feature

›  NFC Forum Class 0-250mW WLC Listener
›  Built-In monitoring function of current, voltage and temperature
›  Wireless Power Transfer(WPT) Automatic stop
›  4.2V VBAT Output, TEMP Input – Direct charging
›  NFC Forum Type2 Tag
›  Embedded high performance 8051 core
›  Semi-Active NFC Dynamic Tag with 1KB SRAM
›  11KB EEPROM Program memory
›  1KB EEPROM Data memory with DMA
›  I2C Slave, I2C Master, UART Serial port
›  5Channel 12bit ADC with sensor interface
　　　　　
