- RFID Reader Module -

TRM-500 TRM-700

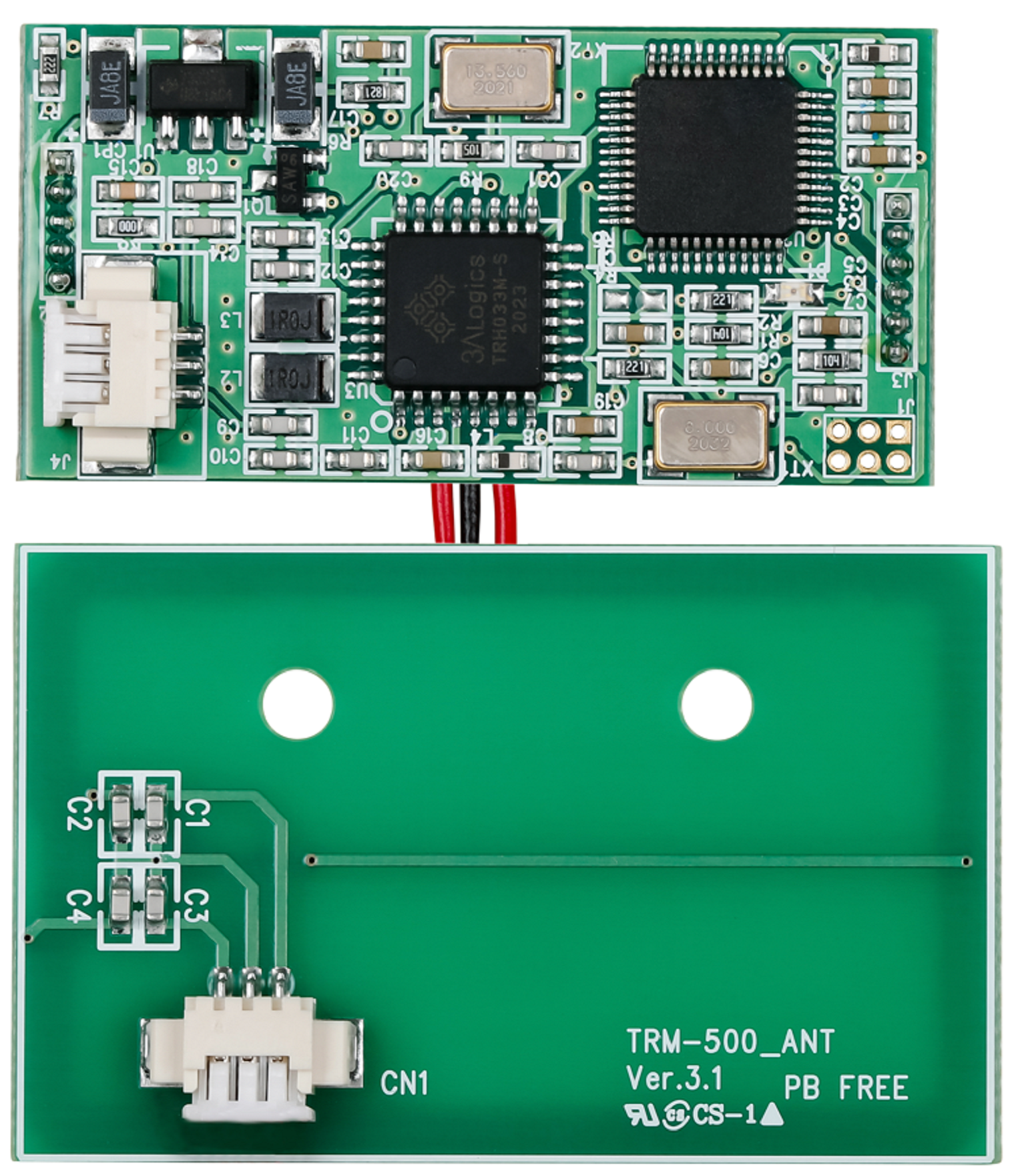

  • TRM-500

FEATURE

• Supports Protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica
• 13.56MHz RFID Reader module
• Based on the TRH033M-S
• Microcontroller – 8k byte Flash, 1K byte SRAM, 512byte EEPROM
• Separated antenna with board
• RS-232 Serial interface　　　　　

SPECIFICATION

Frequency 13.56MHz
Protocol ISO/IEC 14443 A & B, ISO/IEC 15693, Felica 39 x 20 (mm)
Size 39 x 20 (mm)
DC Power 5V
TX driver Power Max. 80mA
Antenna HF Loop antenna, 42 x 27 (mm)
Antenna cable 200 mm
Interface RS232
Operating Range Up to 70mm
Operating Temperature -20 ~ 65°C
  • TRM-700

FEATURE

• Supports Protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica
• 13.56MHz RFID Reader module
• Based on the TRH033M-S
• Microcontroller – 8k byte Flash, 1K byte SRAM, 512byte EEPROM
• On board HF Loop antenna
• RS-232 Serial interface　　　　　

SPECIFICATION

Frequency 13.56MHz
Protocol ISO/IEC 14443 A / B, ISO/IEC 15693
Size 30 X 50 X 11 (mm)
DC Power 5V
TX driver Power Max. 80mA
Antenna HF Loop antenna, 28 x 48 (mm)
Interface RS232
Operating Range Up to 50mm
Operating Temperature -20 ~ 65°C
