NFC Tag IC

Specification

product_img
Frequency
13.56MHz
Operating Temp
-40 ~ 85°C
Protocol
NFC Forum Type3 Tag
JIS 6319-4
Data Rate
214 / 424Kbps
Supply Voltage
2.0V ~3.6 (VCC)
Host Interface
I2C
Memory
1Kbyte EEPROM, 64byte SRAM
Package
8pin XQFN (1.6mm x 1.6mm)

Feature

• Functions for microprocessor interface

- I2C Slave (Up to 400kHz)
- IRQ Output to Advise Tag status monitoring

• Energy harvesting

- Rectifier power out (VREC) Up to 20mW, Not regulated
- Depending on external RF and Antenna condition

• Power consumption minimization

- Optimized logic and Internal gated low frequency clock
- Minimized leakage and Stand by current

　　　　　

Specification

product_img
Frequency
13.56MHz
Operating Temp
-40 ~ 85°C
Protocol
NFC Forum Type3 Tag
JIS 6319-4
Data Rate
212Kbps
Supply Voltage
1.62V ~ 3.6V
Em-MCU
Flip8051-Cyclone
Host Interface
UART/I2C
Memory
6Kbyte EEPROM, 2Kbyte RAM
ETC Information
Em-12bit ADC, Sensor
Interface, Internal LDO
Package
16pin QFN (4mm x 4mm)

Feature

• 4Stage pipeline architecture, 12Times faster than the legacy 80C51/52
• Analog RF field detection and Wakeup
• Integrated RF tuning capacitor
• 4Channel 12bit-ADC with sensor trigger interface
• Internal 1.8V LDO
• Integrated PWM and Current drive sensor interface controller
• Energy harvesting

- Up to 5.0mA @ 3.0 V (Harvesting VREC)
- Depend on external antenna and RF condition

　　　　　

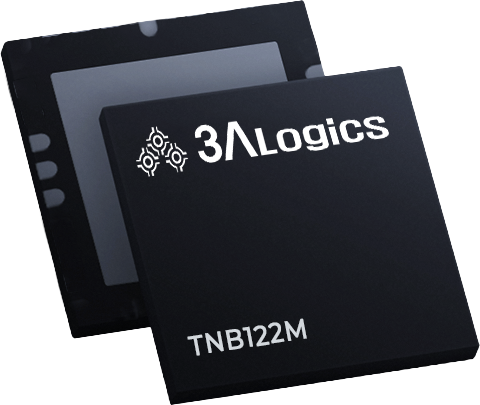

Specification

product_img
Frequency
13.56MHz
Operating Temp
-40~ 85°C
Support protocol
NFC Forum Type 3 Tag
JIS 6319-4
Data Rate
212kbps
Supply Voltage
1.62V ~ 3.6V
Em-MCU
Flip8051-Cyclone
Host Interface
UART/I2C/SPI
Memory
32Kbyte Flash, 2Kbyte RAM
Package
QFN28(4x4mm)
ETC Information
Em-12bit ADC, Sensor Interface, Internal LDO

Specification

product_img
Frequency
13.56MHz
Operating Temp
-40 ~ 85°C
Protocol
NFC Forum Type2 Tag
ISO14443A
Data Rate
106Kbps
Supply Voltage
1.62V ~ 3.6V (VCC)
Host Interface
I2C
Memory
1Kbyte EEPROM, 64byte SRAM
Package
8pin XQFN (1.6mm x 1.6mm)

Feature

• Functions for microprocessor interface

- I2C Slave (Up to 400kHz)
- IRQ Output to Advise Tag status monitoring

• Energy harvesting

- Rectifier power out (VREC) Up to 20mW, Not regulated
- Depending on external RF and antenna condition

• Power consumption minimization

- Optimized logic and Internal gated low frequency clock
- Minimized leakage and stand by current

• 32bit password protection to prevent unauthorized memory access
• Lock and Capability container (CC) byte with anti-tearing protection
• Lock and CC bytes with OTP access bits
　　　　　

Specification

product_img
Frequency
13.56MHz
Operating Temp
-40 ~ 85°C
Protocol
NFC Forum Type2 Tag
Data Rate
106Kbps
Interface
Open drain mode port
Memory
188byte LogicNVM (100,000 cycle endurance)
Memory Access Protection
32bit password
UID
7byte UID
Package
DOW (Die on Wafer)
* Au bump / 120µm thickness / On film carrier

Feature

• Configurable RF field or tamper detection pin RFTP
• True anticollision
• Non-Volatile memory

- 184bytes organized in 46pages with 4bytes per page
- 144bytes for user data area (36pages)
- 40bytes for UID/CC/LO CK/System configuration area (10pages)
- Password protection with optional limit of unsuccessful attempts
- Lock and Capability container (CC) byte with anti-tearing protection
- Lock and CC bytes with OTP access bits
- Data retention of 10 years

　　　　　

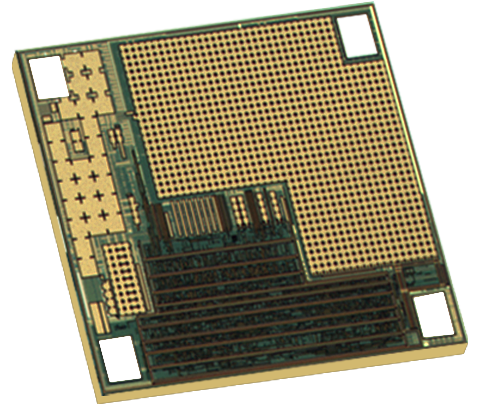

Specification

product_img
Frequency
13.56MHz / 860 ~ 960MHz (Dual Band Tag)
Protocol
NFC Forum Type5 Tag
ISO/IEC 15693
EPC Class1 Generation2
ISO/IEC 18000-6C
Operating Temp
-40 ~ 85°C
Memory
3.6Kbits EEPROM
UHF Sensitivity
(Read) -18dBm / (Write) -12dBm
Package
Bumped Die

Feature

• Basic information

  - Dual Frequency UHF & NFC Passive Tag

  - EEPROM 3264-bit NFC/EPC Shared Memory



 • NFC Interface

  - RF interface based on ISO/IEC 15693 up to 26 kbps

  - NFC Forum Type 5 Tag compliance

  - 8-Byte UID, True Anticollision

  - Configurable RF field or Tamper detection Pin (RFTP)

  - 32Byte Digital signature for the originality authentication



 • UHF Interface

  - ISO/IEC18000-6 m3, EPC Class1 Generation 2 Compliant

  - Configurable EPC format

  - Lock Banks with OTP access bits



 • EEPROM Memory

  - 388 bytes organized in 97 blocks with 4 bytes per block

  - 60 bytes for EPC Bank0,1,2,3(15 blocks) memory

  - 256 bytes for NFC UID/LOCK/CC/NDEF User memory

  - 72 bytes for NFC Only User Data (18 pages)

  - Write endurance 100,000 cycles

  - Data retention of 10 years

　　　　　

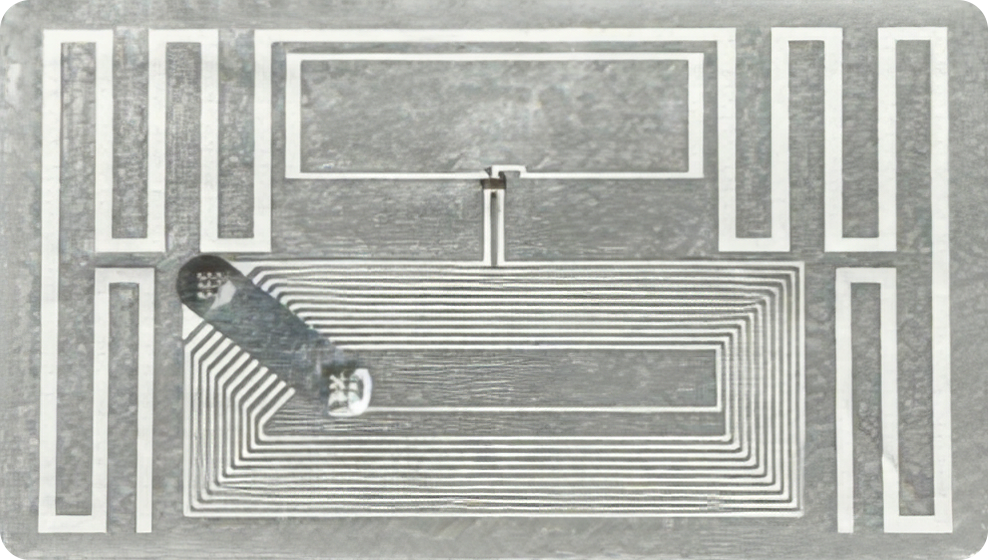

Specification

product_img
Frequency
13.56MHz / 860 ~ 960MHz
Operating Temp
-40 ~ 85°C
Protocol
NFC Forum Type2 Tag
ISO/IEC 14443 A
EPC Class1 Generation2
ISO/IEC 18000-6 mode3
Data Rate
106Kbps(NFC), 640K/UL
160K/DL (EPC)
Supply Voltage
2.0V ~ 3.6V
Em-MCU
RISC-V E20 Core
Host Interface
UART, I2C
Memory
32KB Program, 4KB Data
8KB SRAM / 3.6Kbits Tag Memory
ETC Infornation
12bit ADC, Sensor IO (ROIC)
Temperature Sensor
Package
32pin QFN (4mm X 4mm)

Feature

• Dual-Band RF Interface
• Embedded NVM memory

- Shared memory (3.6Kbits)
- EEPROM 326bytes (Code & Data configurable memory: Default 32KB/4KB)

• Internal temperature senser / RTC

- Tamperature range: -40~85°C / Accuracy : ±0.5°C
- RTC Clock accuracy: ±2%
- Configurable temperature interval

• Embedded 12bit SAR ADC
• Embedded ROIC

- Resistance / Capacitance / Inductance

• Embedded LDO
　　　　　
