3ALogics

NFC Frequency

13.56MHz

NFC Protocol

ISO/IEC 15693 Standard, (NXP SL2 ICS20, I-CODE)

Operating Range

Up to 50cm

Display

7” TFT LCD, 3Color LED

OS

MS Windows XP, 7

Entrance Control

Bipod Turnstile bar
Electro-mechanical motor Rotation
Positive locking operation for one person at a time

Power

24V DC SMPS 250W x 2

Frequency

6.78MHz ± 15kHz

Specification

A4WP Wireless Power Transfer System
Baseline System Specification (BSS)
V1.2.1

PRU Antenna

Category 3

PRU Application

Smart phone

Dimension

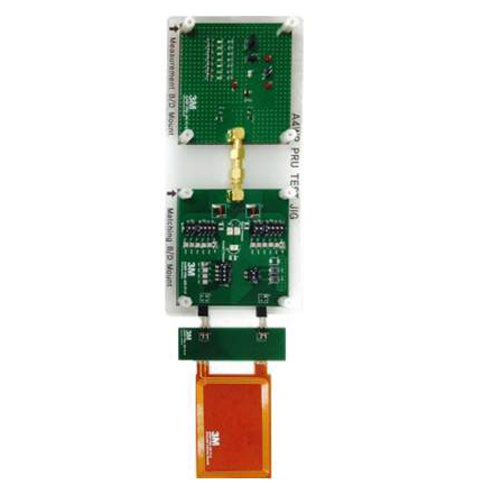

Measurement Board
65mm x 70mm x 10mm
Matching Board
65mm x 70mm x 10mm
Reference Matching Board
65mm x 70mm x 10mm
Reference Antenna Board
65mm x 80mm x 6mm
Antenna Interface Board
65mm x 20mm x 6mm

Special Feature

- Separated 3 Part Board
- Power Measurement Board
- Matching Board
- Antenna & Antenna interface Board
- Output Current Range 1.5A
- Output Voltage Range 38V
- 7LED Receive indicator (5V, 10V, 15V, 20V, 24V, 30V, 36V)
