3ALogics

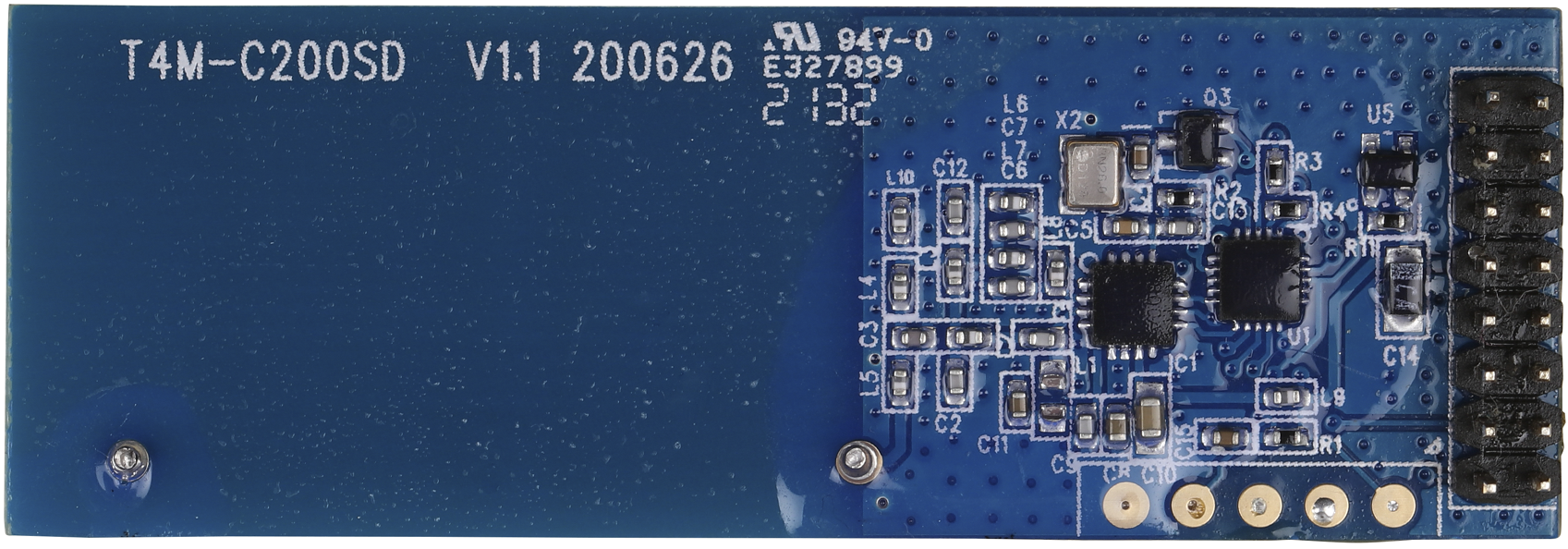

Center Frequency

447.275MHz

MCU

8bit 8051

Max Tx Power

9dBm

Rx Sensitivity

-115dBm

Operation Power

+3.3v

Operating Temperature

-10 ~ 50°C

PCB Size

58mm X 20mm X 6mm

Range

150m

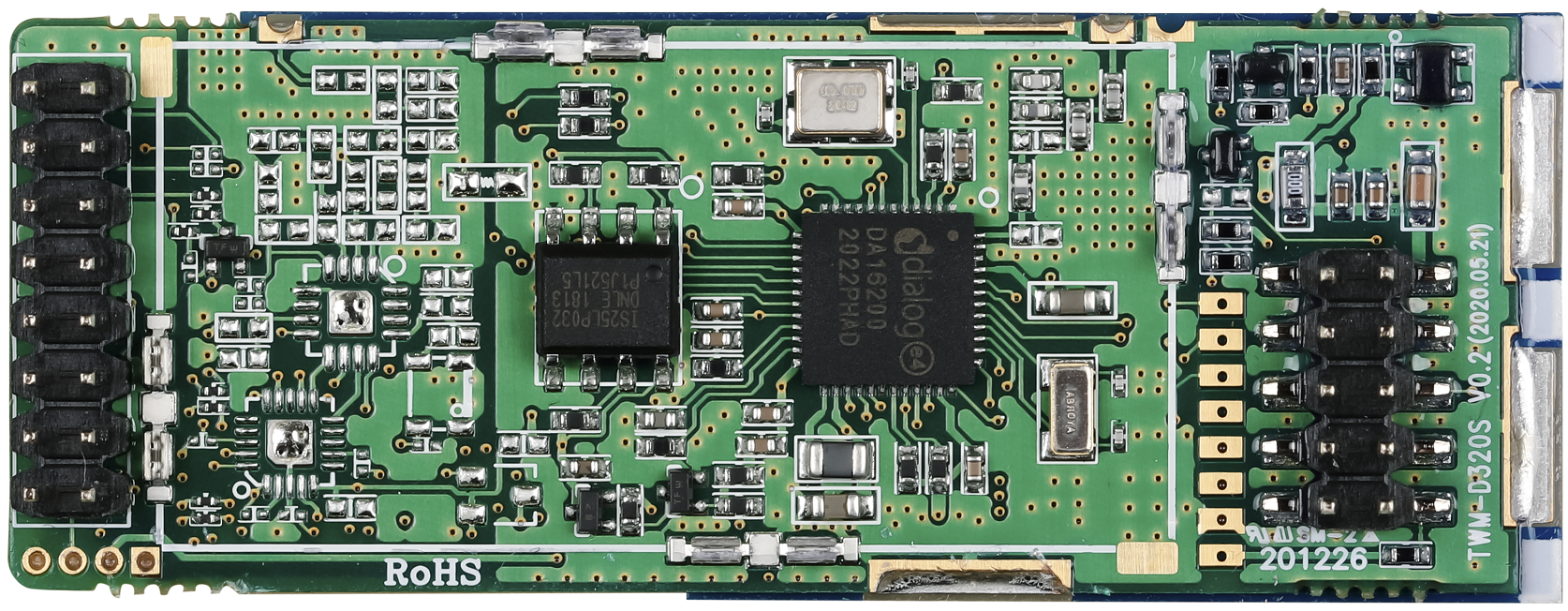

Protocol

IEEE 802.11b/g/n

Wi-Fi Mode

Station Soft AP

Frequency Range

2.4GHz, 20MHz Channel Bandwidth

Max Tx Power

19 dBm@1Mbps DSSS

Rx Sensitivity

-98dBm(802.11b 1Mbps)

MCU

40MHz Cortex-M4

ROM/SRAM/FLASH

256KB/512KB/4MB

Interface

2UARTs, SPI, I2C, GPIOs

Supply Voltage

3.0V ~ 3.6V

Antenna

PCB patch

PCB Size

54mm x 20.5mm x 6.8mm
