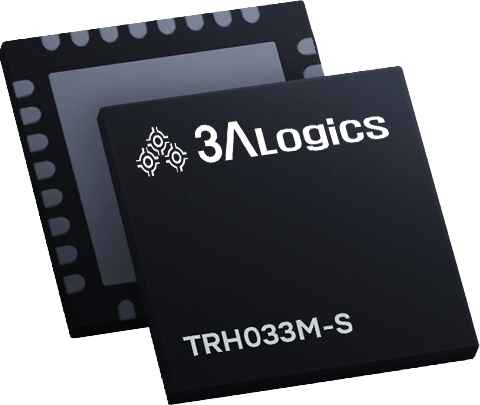

TRH033M-S
  • TRH033M-S

FEATURE

• Performs mixed analog and digital operations as specified by standards
• Power consumption optimization

- Hardware/Software power-down function
- Minimized leakage and standby current

• Microprocessor interface functions

- 128-byte FIFO buffer for immediate data storage
- Four types of parallel interfaces and one SPI serial interface

• Two transmit drivers can be configured
• Automatic calibration function for the analog receiver
• Transmit power and modulation index configuration
• Adjustable receiver sensitivity depending on noise conditions
• Configurable data rate and pulse width according to protocol standards
Frequency 13.56 MHz
Protocol • ISO/IEC 14443 A/B
• ISO/IEC 15693
• Tag-it protocols
Modulation Type ASK 5~35%, ASK 100%
Operating Range Up to 10cm
Supply Voltage 2.9V ~ 3.6V
Package 32-pin LQFP (7.0mm × 7.0mm)
