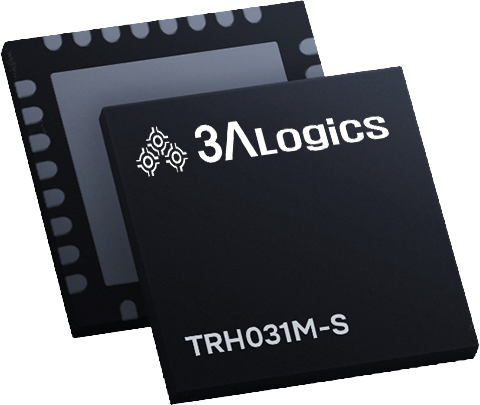

  • TRH031M-S

FEATURE

• Performs Analog and Digital mixed operations as standards indicated

• Power consumption minimization - Hardware/Software power down function

   - Minimized leakage and stand-by current • Functions for microprocessor interface

   - 128bytes FIFO buffffer for immediate data storage

   - 4 type of Parallel interface and SPI Serial interface

• Programmable Transmission Current Drivability up to 150mA

• Two Transmit driver can be configured

• Analog Receiver auto Calibration function

• Transmit power and modulation index configuration

• Adjustable receiver sensitivity depends on noise condition

• Data rate and pulse width configuration according to protocol standards

Frequency 13.56MHz
Protocol ISO/IEC 14443 A/B, 15693, Tag-it Protocols
Modulation ASK 5~35% & ASK 100%
Operating Range Up to 10cm
Supply Voltage 2.9V ~ 3.6V
Package Size 7.0 mm x 7.0 mm
Package LQFP (32pin)
Applications • Digital Door-Lock / Entrance Management
• E-cash Reader
• Public Transport Terminals
• Handheld Terminals
• On Board Units
• Contactless PC Terminal
• Card/RF-level detector
• ISO/IEC 18092(NFCIP-1)
• JIS 6319-4(Felica)
