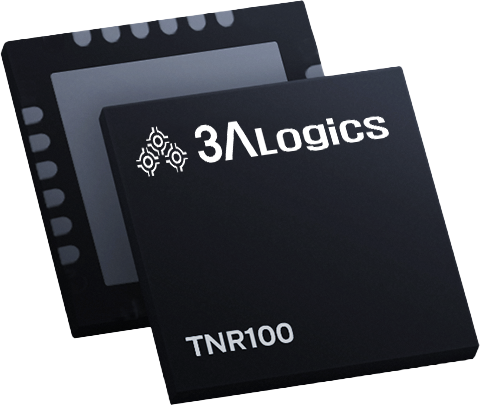

TNR100
  • TNR100

FEATURE

• Basic information

- 13.56MHz multi-protocol NFC reader IC
- Internal card detector (with internal 50kHz oscillator)

• Supports mixed analog and digital operations in compliance with standards

- Modulation/Demodulation, Encoding/Decoding
- Framing and collision detection for anti-collision

• Microprocessor interface functions

- 256-byte FIFO buffer for immediate data storage
- Configurable interrupt to notify the microprocessor of events
- Configurable and adjustable timer function, synchronized with transceiver state and interrupt

• Minimized power consumption

- Hardware/software power-down function
- Minimized leakage and standby current

Frequency 13.56MHz
Operating Temp -40 ~ 125°C
Protocol ISO/IEC 14443 A/B, 15693 Standards I-CODE, Tag-It, Felica, Jewel Protocols, ISO/IEC 18092
Modulation Type ASK 5~35% & ASK 100%
Operating Range Up to 10cm Depending on Tag Type
Supply Voltage 3.0V ~ 5.0V TX Power
3.0V Analog and Logic power
ESD(HBM) 8kV
Host Interface SPI/I2C
Internal LDO Yes
Package 24pin QFN (4.0mm x 4.0mm)
Certification AEC-Q100 (Grade1), Certification Release 13(CCC Digital Key Reader Device, NFC Reader Device)
