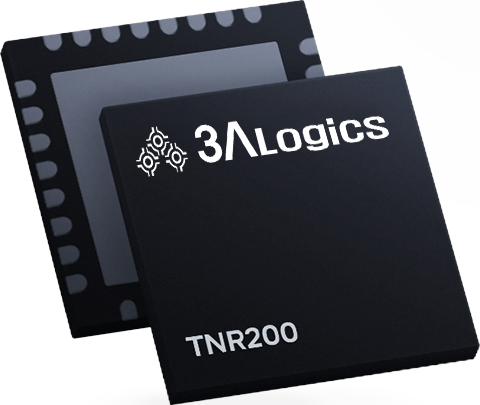

TNR200
  • TNR200

FEATURE

• Supports mixed analog and digital operations in compliance with standards

- Modulation/Demodulation, Encoding/Decoding
- Framing and collision detection for anti-collision
- Transmitter RF shape control and dynamic power control
- Transmitter overshoot/undershoot protection logic
- Receiver I/Q architecture and AGC (RSSI) function
- Clock recovery for active communication

• Microprocessor interface functions

- 512-byte FIFO buffer for immediate data storage
- Asynchronous SPI up to 7 Mbps, I²C up to 3.4 Mbps serial interface
- Configurable interrupt to notify the microprocessor of events
- Configurable and adjustable timer function, synchronized with transceiver state and interrupt

• Minimized power consumption

- Hardware/software power-down function
- Minimized leakage and standby current

• Other functions

- Configurable data rate and pulse width according to protocol standards
- Test pins for operation check
- Quartz oscillator capable of operating at 27.12 MHz
- Embedded temperature sensor (±5 ℃)

Frequency 13.56MHz
Protocol ISO/IEC14443 A/B, ISO/IEC15693, Tag-It, Felica, Jewel, Tag-It, ISO/IEC18092
Supply Voltage 3.0 ~ 5.5V
Operating Temp -40°C ~ 125°C
Host Interface SPI, I2C
Package 32pin QFN (4.0mm X 4.0mm)
Low Power Card Detector Internal 32kHz RCOSC, 8bit ADC, Phase Detector
LDO Pwr Mod.: < 4.5 LDO / Analog: 1.8V LDO, Digital: 1.8V LDO
Certification AEC-Q100(Grade1), NFC Forum(Certification Release 13 Reader, CCC Digital Key Reader)
