- 제품 상세보기 -

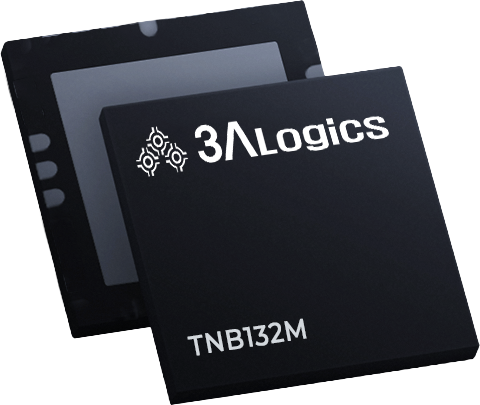

TNB132M
  • TNB132M

FEATURE

• Functions for microprocessor interface

- I2C Slave (Up to 400kHz)
- IRQ Output to Advise Tag status monitoring

• Energy harvesting

- Rectifier power out (VREC) Up to 20mW, Not regulated
- Depending on external RF and Antenna condition

• Power consumption minimization

- Optimized logic and Internal gated low frequency clock
- Minimized leakage and Stand by current

Frequency 13.56MHz
Operating Temp -40 ~ 85°C
Protocol NFC Forum Type3 Tag
JIS 6319-4
Data Rate 214 / 424Kbps
Supply Voltage 2.0V ~3.6 (VCC)
Host Interface I2C
Memory 1Kbyte EEPROM, 64byte SRAM
Package 8pin XQFN (1.6mm x 1.6mm)
