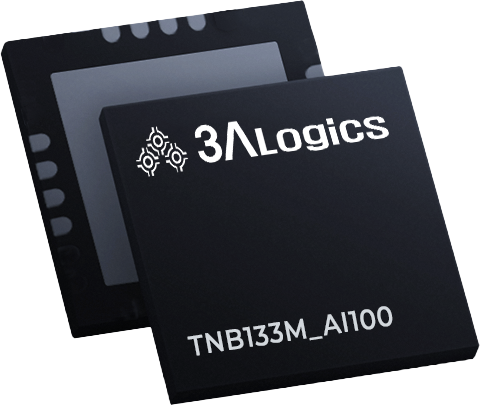

TNB133M_AI100
  • TNB133M_AI100

FEATURE

• 4Stage pipeline architecture, 12Times faster than the legacy 80C51/52
• Analog RF field detection and Wakeup
• Integrated RF tuning capacitor
• 4Channel 12bit-ADC with sensor trigger interface
• Internal 1.8V LDO
• Integrated PWM and Current drive sensor interface controller
• Energy harvesting

- Up to 5.0mA @ 3.0 V (Harvesting VREC)
- Depend on external antenna and RF condition

Frequency 13.56MHz
Operating Temp -40 ~ 85°C
Protocol NFC Forum Type3 Tag
JIS 6319-4
Data Rate 212Kbps
Supply Voltage 1.62V ~ 3.6V
Em-MCU Flip8051-Cyclone
Host Interface UART/I2C
Memory 6Kbyte EEPROM, 2Kbyte RAM
ETC Information Em-12bit ADC, Sensor
Interface, Internal LDO
Package 16pin QFN (4mm x 4mm)
