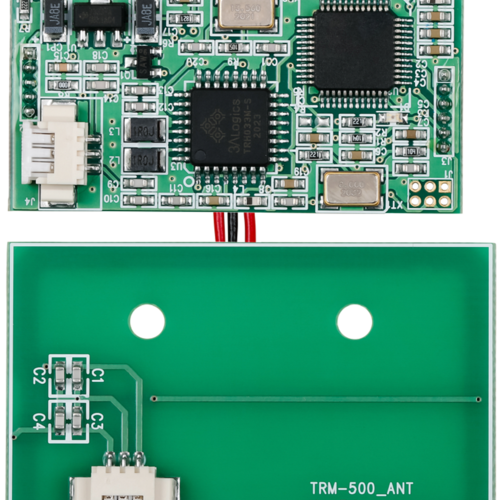

TRM-500
  • TRM-500

FEATURE

›  Supports protocol
    - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica
›  13.56MHz RFID Reader module
›  Based on the TRH033M-S
›  Microcontroller – 8Kbyte Flash, 1Kbyte SRAM, 512byte EEPROM
›  Separated antenna with board
›  RS-232 Serial interface
Frequency 13.56MHz
Protocol ISO/IEC 14443 A/B, ISO/IEC 15693, Felica
PCB Size 39mm x 20mm x 6.5mm
DC Power 5V
TX driver Power Max 80mA
Antenna HF Loop antenna, 42mm x 27mm x 6.5mm
Antenna cable 200 mm
Interface UART
Operating Range Up to 70mm
Operating Temper -20 ~ 65°C
