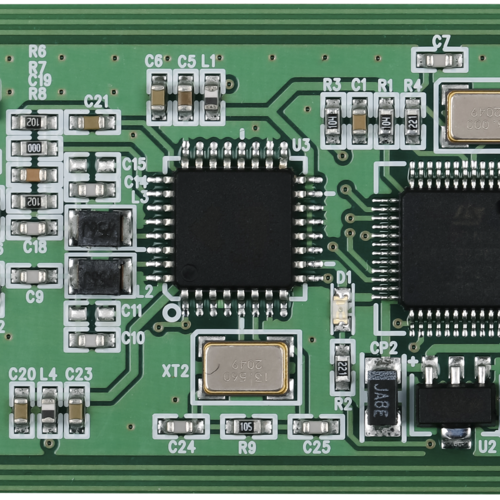

TRM-700
  • TRM-700

FEATURE

›  Supports protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica
›  13.56MHz RFID Reader module
›  Based on the TRH033M-S
›  8Kbyte Flash, 1Kbyte SRAM, 512byte EEPROM
›  On board HF Loop antenna
›  RS-232 Serial interface
Frequency 13.56MHz
Protocol ISO/IEC 14443 A / B, ISO/IEC 15693 Felica
PCB Size 30mm x 50mm x 11mm
DC Power 5V
TX driver Power Max 80mA
Antenna HF Loop antenna, 28mm x 48mm
Interface UART
Operating Range Up to 50mm
Operating Temp -20 ~ 65°C
