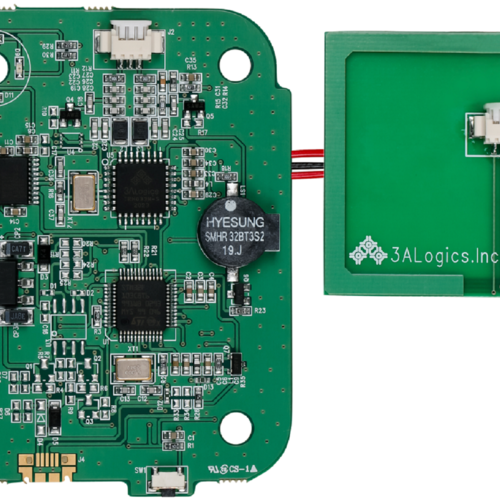

TRM-800N
  • TRM-800N

FEATURE

›  Based on the TRH033M-S
›  Separated antenna with board
›  Supports protocol
   - ISO/IEC 14443 A,B, ISO/IEC 15693, Felica,Topaz, ISO/IEC 18092 (Active P2P)
›  Support ISO/IEC 18092 (NFCIP-1) / ECMA 340
   - RFID Reader and Writer mode
   - Peer to Peer mode
›  Support all NFC Forum Tags (Type1 , 2, 3, 4)
›  Active initiator and Active/Passive target mode according to ISO/IEC 18092
›  8Kbyte Flash, 1Kbyte SRAM, 512byte EEPROM
Frequency 13.56MHz
PCB Size 52mm x 67mm x 4.5mm
DC Power 5V Max
TX Driver Power 80mA
Antenna HF Loop antenna, 50mm x 37mm x 4.5mm
Antenna cable 200mm
Interface USB
Operating Range Up to 70mm
Operating Temperature -20 ~ 65°C
