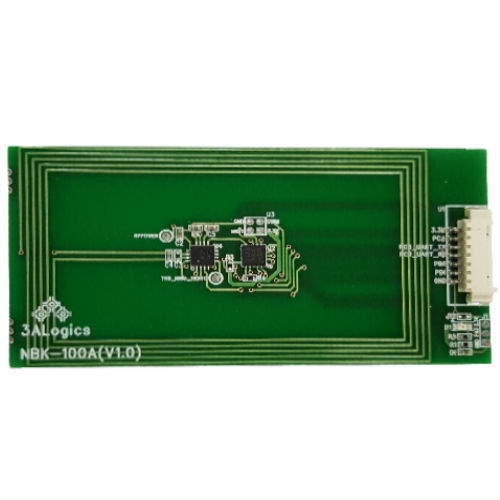

  • NBM-100A
Frequency 13.56MHz
Protocol ISO/IEC 18092 (JIS 6319-4)
Operating Temperature -40 ~ 85°C
Power 1.6 ~ 3.6V
Host interface UART or GPIO 3port (9600~115200 bps)
Board 32mm x 61mm x 1.75mm
Antenna Size 5 turn, 31mm x 52mm L = 2.47μH
NFC mode Type 3 tag emulation *NFCIP-1 passive target
Modulation Load modulation
MCU 8bit Ultralow power MCU
Memory Flash 8Kbyte, SRAM 1.5Kbytes, EEPROM 2Kbytes
