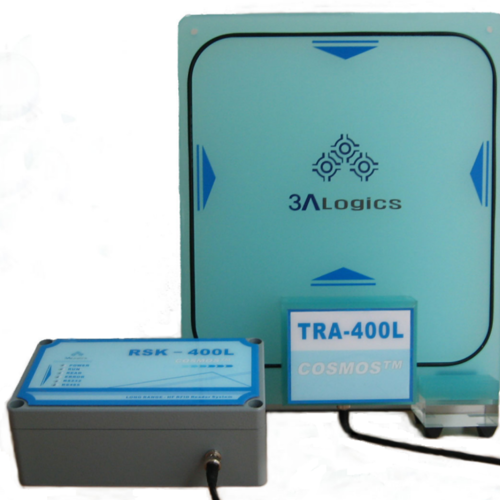

RSK-400L
  • RSK-400L

FEATURE

›  Only ISO/IEC 15693
›  13.56MHz Long range Reader module
›  Based on the TRH033M-S
›  External power boost up circuit
   - Based on the BLF245 (Power TR)
›  Microcontroller with 1Kbyte SRAM, 512byte EEPROM
›  Separated antenna with board (50ohm)
›  RS-232/485 Serial interface
›  6 LED indicators
Frequency 13.56MHz
Protocol ISO/IEC 15693, NXP SL2 ICS20 (I-CODE)
Size 220mm x 125mm x 80mm - Housed
Baud Rate 1.6 / 26.5Kbps
Anti-collision Available
DC Power 24V DC
TX Power Max 3W
Antenna TRA-400L, 50ohm External antenna
RF Coaxial Cable Type
350mm x 420mm x 45mm
Interface RS232/485
Operating Range Up to 50
Operating temperature -20°C ~ 65°C
