- 제품 상세보기 -

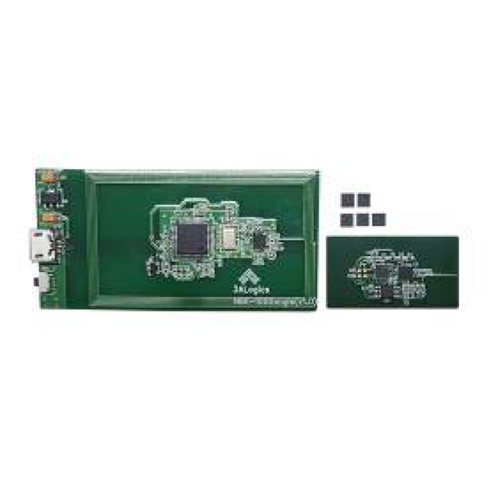

NBK-100Dongle
  • NBK-100Dongle

FEATURE

[ NBK-100 Dongle KIT Component ]
• NBM-100 Dongle Board 1 EA
   : Main Board – SDK
• TNB131M IC 5 EA
• NBK-100EH Board 1 EA
   : Energy Harvesting Application Board
• NBM-100DL Board 1 EA
   : Data logger Application Board
    (with Temperature sensor)
Frequency 13.56MHz
Protocol ISO/IEC 18092 (JIS 6319-4)
Operating Temp -40 ~ 85°C
Power 1.65 ~ 3.6V
Host interface USB 2.0 full speed interface
*Virtual COM (Serial communication)
Host interface Protocol N-Bridge Command / Protocol (proprietary)
Board PCB - FR4, 1.0T
32mm x 65mm x 4mm
Antenna Size 5 turn, 30mm x 52.5mm L = 2.9μH
NFC mode Type 3 tag emulation
*NFCIP-1 passive target
Modulation Load modulation
Data rate 212 / 424kbps (Selective data rate)
