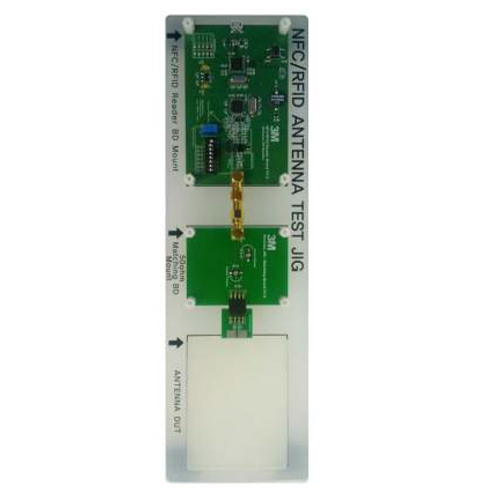

  • NTJ-100

FEATURE

[ NTJ-100 Component ]
• NFC/RFID Reader Board 1EA
• Acrylic Mount Board 1 EA
• Antenna Matching Board 5 EA
    0.5μH ≤ Lant ≤ 0.7μH Board 1EA
    0.7μH ≤ Lant ≤ 1.0μH Board 1EA
    1.0μH ≤ Lant ≤ 1.5μH Board 1EA
    1.5μH ≤ Lant ≤ 2.5μH Board 1EA
    2.5μH ≤ Lant ≤ 5.0μH Board 1EA
• Antenna Connector Board 10EA
• Reference Antenna 2EA (2Type)
• Reference ISO/IEC 14443 A TAG 1EA
    ISO/IEC15693 TAG 1EA
• Adjustment tool 1EA
Frequency 13.56MHz
NFC Protocol ISO/IEC 14443 A type (Type2)
ISO/IEC 15693
Power 5.0V USB Power
TEST Antenna 0.5μH ~ 5μH
NFC IC Based on TRH033M-S
Dimension NFC Reader Board
65mm x 100mm x 12mm
Matching Board
65mm x 50mm x 10mm
Antenna interface Board
15mm x 15mm x 5mm
NTJ-100
95mm x 305mm x 40mm
Special Feature • 4 LED indicator
• 1 Buzzer
• Antenna impedance matching adjustment : 2 trimmer - Shunt/Series
• Receiver signal dynamic range adjustment : variable resistor
