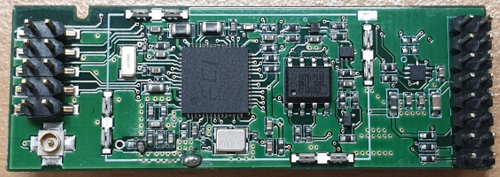

  • TWM-F200
Protocol IEEE 802.11b/g/n
WiFi Mode Station, Soft AP
Frequency Range 2.4GHz, 20MHz channel bandwidth
Max Tx Power 19 dBm@1Mbps DSSS
Rx Sensitivity -98dBm(802.11b 1Mbps)
ROM/SRAM/FLASH 192KB/1664KB/4MB
DPL Dynamic Power Limiting For USB
Interface 2UARTs, SPI Master/Slave, I2C Master/Slave, I2S, PWM, GPIOs
Supply Voltage 3.0V ~ 3.6V
Antenna Ceramic Patch
Size 62.5 x 24mm
