- 제품 상세보기 -

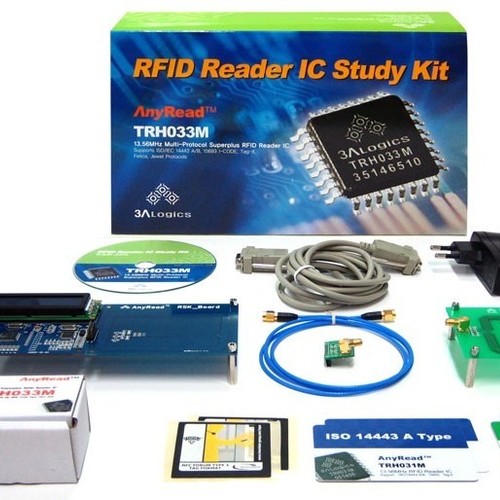

RSK-300
  • RSK-300

FEATURE

›  Microcontroller with 256Kbyte RAM, 64Kbyte ROM
›  On board HF Antenna coil
›  16 X 2 Character LCD module
Frequency 13.56MHz
Protocol ISO/IEC 14443 A/B, 15693
Standards I-CODE, Tag-it
Felica, Jewel Protocols
Reader Size 110mm x 74mm (L x W)
Antenna Size 80mm x 53mm (L x W)
Balun Module Size 20mm x 20mm (L x W)
DC Power 5V (DC jack)
Interface RS232
Operating Range Up to 10cm Depending on Tag Type
