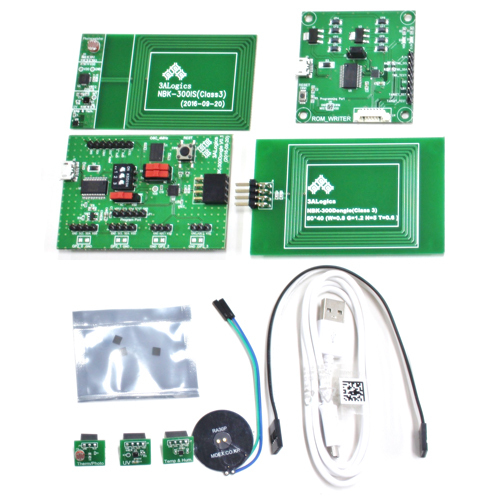

  • NBK-300

FEATURE

[NBK-300Dongle]


•NFC Bridge and UART interface IoT Sensor Application Board
•Supports Protocol : NFC Forum’s NFC-F Technology & Tag Type3
•N-Bridge system EEPROM 6Kbyte
 (NFC Data memory –1Kbyte / MCU Program memory –5Kbyte)
•Based on the TNB133M / em-Flip8051 (DOLPHIN) MCU
•5V DC Power (USB Power)
•Operating distance : 10 ~ 30mm
•3 Switch : External OSC select, External USB Power Select
•Selectable UART interface
•Class3 Coil Antenna
•External Sensor device
•em-Flip8051 (DOLPHIN) MCU


[ NBK-300IS ]


•NFC Bridge IoT Sensor Application Board
•Supports Protocol : NFC Forum’s NFC-F Technology & Tag Type3
•Operating distance : 10 ~ 30mm
•Based on the TNB133M
•em-Flip8051 (DOLPHIN) MCU
•Battery-less

Frequency 13.56MHz
Protocol NFC Forum’s NFC-F Technology & Tag Type3
Operating Temp -40 ~ 85°C
Power 5V DC Power (USB Power)
Host interface USB 2.0 full speed interface
*Virtual COM (Serial communication)
Dimension NBK-300Dongle: 45mm X 65mm X12mm
Class3 Antenna: 45mm X 73mmX 9mm
NBK-300IS: 40mm X 72mm X 4mm
