- 제품 상세보기 -

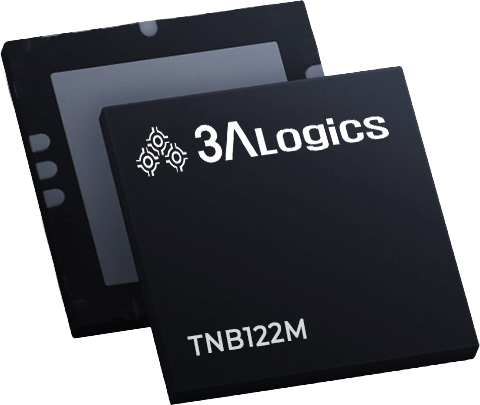

TNB122M
  • TNB122M

FEATURE

• Functions for microprocessor interface

- I2C Slave (Up to 400kHz)
- IRQ Output to Advise Tag status monitoring

• Energy harvesting

- Rectifier power out (VREC) Up to 20mW, Not regulated
- Depending on external RF and antenna condition

• Power consumption minimization

- Optimized logic and Internal gated low frequency clock
- Minimized leakage and stand by current

• 32bit password protection to prevent unauthorized memory access
• Lock and Capability container (CC) byte with anti-tearing protection
• Lock and CC bytes with OTP access bits
Frequency 13.56MHz
Operating Temp -40 ~ 85°C
Protocol NFC Forum Type2 Tag
ISO14443A
Data Rate 106Kbps
Supply Voltage 1.62V ~ 3.6V (VCC)
Host Interface I2C
Memory 1Kbyte EEPROM, 64byte SRAM
Package 8pin XQFN (1.6mm x 1.6mm)
