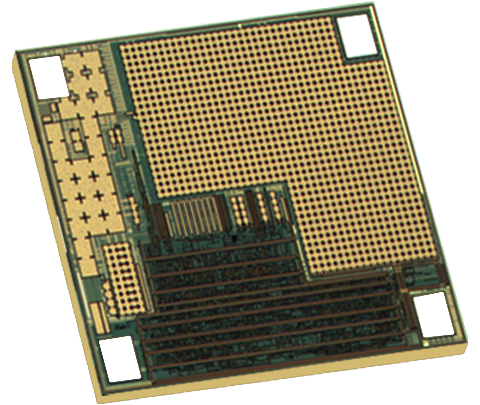

TNP200M
  • TNP200M

FEATURE

• Configurable RF field or tamper detection pin RFTP
• True anticollision
• Non-Volatile memory

- 184bytes organized in 46pages with 4bytes per page
- 144bytes for user data area (36pages)
- 40bytes for UID/CC/LO CK/System configuration area (10pages)
- Password protection with optional limit of unsuccessful attempts
- Lock and Capability container (CC) byte with anti-tearing protection
- Lock and CC bytes with OTP access bits
- Data retention of 10 years

Frequency 13.56MHz
Operating Temp -40 ~ 85°C
Protocol NFC Forum Type2 Tag
Data Rate 106Kbps
Interface Open drain mode port
Memory 188byte LogicNVM (100,000 cycle endurance)
Memory Access Protection 32bit password
UID 7byte UID
Package DOW (Die on Wafer)
* Au bump / 120µm thickness / On film carrier
