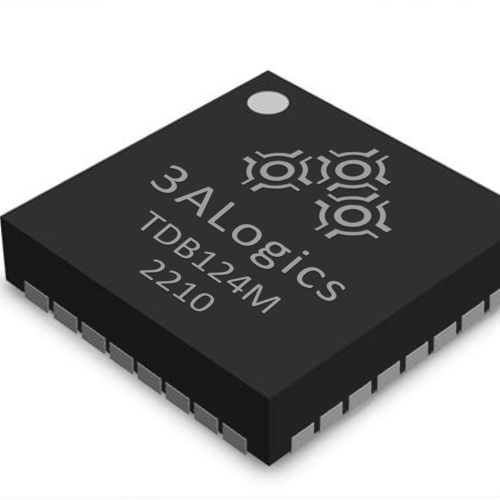

TDB124M
  • TDB124M

FEATURE

› Dual-band RF Interface

› Embedded NVM Memory

  - Shared memory (3.6Kbits)

  - EEPROM 326Bytes (Code & Data Configurable memory: default 32KB/4KB)

› Internal Temperature Sensor / RTC

  - Temperature range:-40~ 85℃ / accuracy : ±0.5℃

  - RTC Clock accuracy: ±2%

  - Configurable Temperature interval

› Embedded 12bit SAR ADC

› Embedded ROIC

  - Resistance / Capacitance / Inductance

› Embedded LDO

Frequency 13.56MHz / 860 ~ 960MHz
Operating Temp -40~ 85°C
Protocol NFC Forum Type 2 Tag
ISO/IEC 14443 A
EPC Class1 Generation2
ISO/IEC 18000-6 mode3
Data Rate 106kbps (NFC)
640K/UL, 160K/DL (EPC)
Supply Voltage 2.0V ~ 3.6V
Em-MCU RISC-V E20 Core
Host Interface UART, I2C
Memory 32KB Program, 4KB data
8KB SRAM / 3.6Kbits Tag memory
ETC Infornation 12bit ADC, Sensor IO (ROIC)
Temperature Sensor
Package 32pin QFN (4mm x 4mm)
