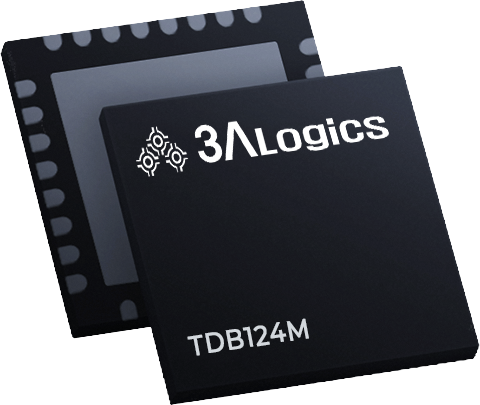

TDB124M
  • TDB124M

FEATURE

• Dual-Band RF Interface
• Embedded NVM memory

- Shared memory (3.6Kbits)
- EEPROM 326bytes (Code & Data configurable memory: Default 32KB/4KB)

• Internal temperature senser / RTC

- Tamperature range: -40~85°C / Accuracy : ±0.5°C
- RTC Clock accuracy: ±2%
- Configurable temperature interval

• Embedded 12bit SAR ADC
• Embedded ROIC

- Resistance / Capacitance / Inductance

• Embedded LDO
Frequency 13.56MHz / 860 ~ 960MHz
Operating Temp -40 ~ 85°C
Protocol NFC Forum Type2 Tag
ISO/IEC 14443 A
EPC Class1 Generation2
ISO/IEC 18000-6 mode3
Data Rate 106Kbps(NFC), 640K/UL
160K/DL (EPC)
Supply Voltage 2.0V ~ 3.6V
Em-MCU RISC-V E20 Core
Host Interface UART, I2C
Memory 32KB Program, 4KB Data
8KB SRAM / 3.6Kbits Tag Memory
ETC Infornation 12bit ADC, Sensor IO (ROIC)
Temperature Sensor
Package 32pin QFN (4mm X 4mm)
